Lapp Ölflex Classic 110 PVC Control cable, 4G 10mm²
Lapp Ölflex Classic 110 PVC Control cable, 4G 10mm²

Lapp Ölflex Classic 110 PVC Control cable, 4G 10mm²

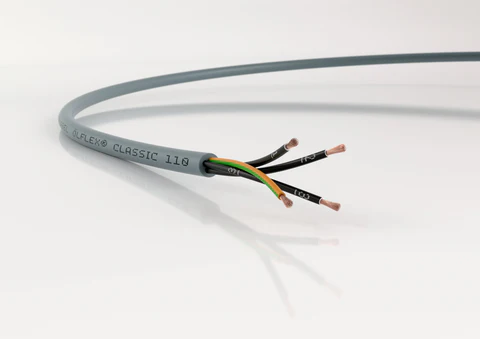

This ÖLFLEX® CLASSIC 110 cable is a versatile control cable offering flexibility, oil resistance, and flame retardance. It is suitable for use in fixed installations or occasional flexing in environments with medium mechanical loads.
Vendor: Lapp Kabel
SKU: 1119614
Availability: In stock
Product type: Cable & Cable Management
Please hurry! Only 17 left in stock
Description
Description
x
This ÖLFLEX® CLASSIC 110 cable is a versatile control cable offering flexibility, oil resistance, and flame retardance. It is suitable for use in fixed installations or occasional flexing in environments with medium mechanical loads.
Specifications
Specifications
x
Compliance / CertificationsVDE reg. no. 7030 for the following sizes: up to 2.5 mm²: 2 - 65 cores from 4 mm²: 2 - 7 cores from 25 mm²: 2 - 5 cores
Country of OriginGermany
FlammabilityIEC 60332-1-2
Temperature: Operating-15°C to +70°C
Material: Insulation / Inner sheathPVC
Material: Jacket / Outer SheathPVC
Bending RadiusOccasional flexing: 10 x outer diameter In power chains: 15 x outer diameter Fixed installation: 4 x outer diameter
Diameter: External conduit size (mm)16.2mm
Weight 590000g
Test Voltage4000 V
Voltage Range/Rating300/500 V
Documents
Documents
x
Download Datasheet
