Description

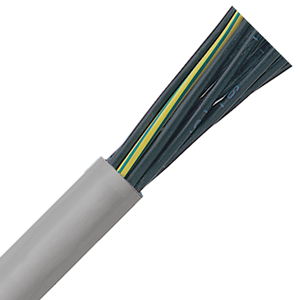

xThis flexible PVC control cable is ideal for torsional applications and medium mechanical load settings. Designed for fixed installation or occasional flexing, it is flame-retardant and oil-resistant, making it suitable for demanding industrial environments.
Specifications
x| Compliance / Certifications | VDE reg. no. 7030 for the following sizes: 2 - 65 cores up to 2.5 mm² / 2 - 7 cores from 4 mm² / 2 - 5 cores from 25 mm² |
| Country of Origin | Germany |
| Flammability | Flame-retardant acc. to IEC 60332-1-2 |
| Temperature: Operating | -15°C to 70°C |
| Material: Inner Conductor / Core | Fine wire strand made of tinned-copper wires |
| Material: Insulation / Inner sheath | PVC |
| Material: Jacket / Outer Sheath | PVC |
| Bending Radius | Occasional flexing: 10 x outer diameter In power chains: 15 x outer diameter Fixed installation: 4 x outer diameter |
| Diameter: External conduit size (mm) | 18.8mm |
| Weight | 661000g |
| Test Voltage | 4000 V |
| Colour | Grey |
| RAL Code | RAL 7001 |
