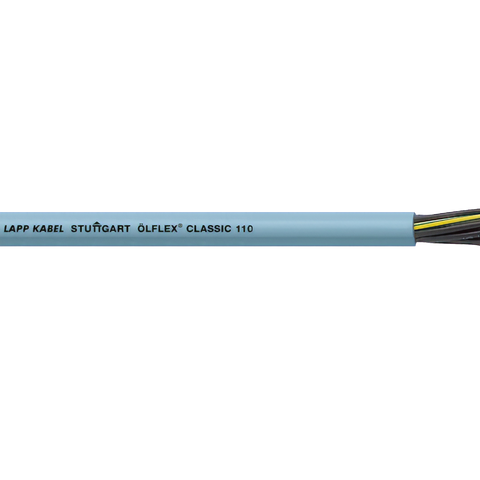

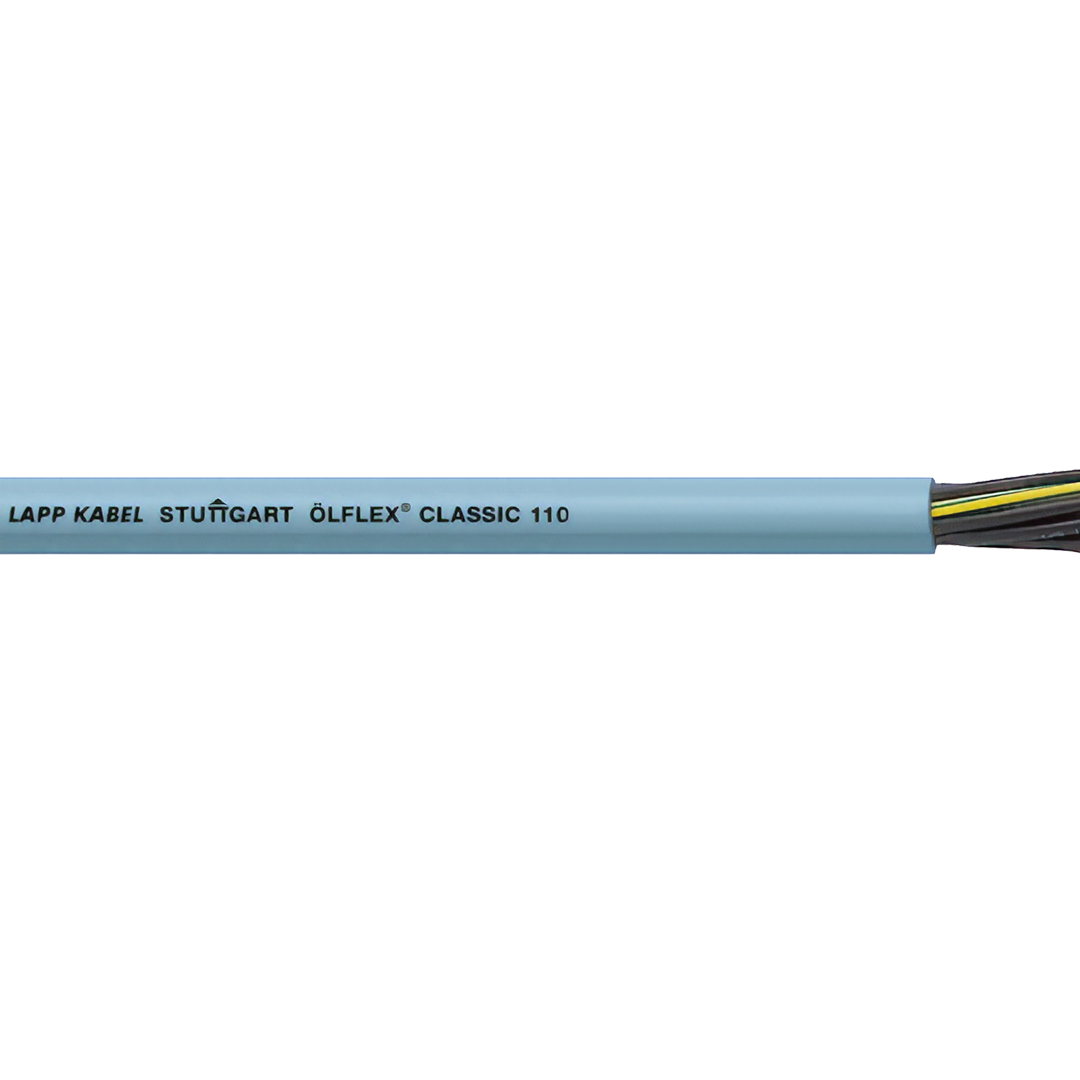

Lapp Ölflex Classic 110 PVC Control cable, 3G 2.5mm²
Lapp Ölflex Classic 110 PVC Control cable, 3G 2.5mm²

Lapp Ölflex Classic 110 PVC Control cable, 3G 2.5mm²

This control cable is oil-resistant and flame-retardant, making it suitable for power chains and torsional applications. It has a diameter of 6.2 mm and operates at 300/500V, with temperature ratings of -15°C to +70°C during flexing. It is commonly used in wind turbines and industrial machinery, designed to handle medium...
Vendor: Lapp Kabel
SKU: 1119403
Availability: In stock
Product type: Cable & Cable Management
Please hurry! Only 978 left in stock
Description
Description
x
This control cable is oil-resistant and flame-retardant, making it suitable for power chains and torsional applications. It has a diameter of 6.2 mm and operates at 300/500V, with temperature ratings of -15°C to +70°C during flexing. It is commonly used in wind turbines and industrial machinery, designed to handle medium mechanical stress in dry or damp environments. Available in multiple lengths.
Specifications
Specifications
x
Compliance / CertificationsVDE reg. no. 7030 for the following sizes: up to 2.5 mm²: 2 - 65 cores from 4 mm²: 2 - 7 cores from 25 mm²: 2 - 5 cores
Country of OriginGermany
FlammabilityFlame-retardant acc. IEC 60332-1-2
Material: Inner Conductor / CoreFine wire strands of bare copper
Material: Insulation / Inner sheathPVC
Material: Jacket / Outer SheathPVC
Bending RadiusOccasional flexing: 10 x outer diameter In power chains: 15 x outer diameter Fixed installation: 4 x outer diameter
Diameter: External conduit size (mm)8.1mm
Weight 132 kg / km
Test Voltage4000 V
Voltage Range/Rating300/500 V
ColourGrey
Documents
Documents
x
Download Datasheet
