Description

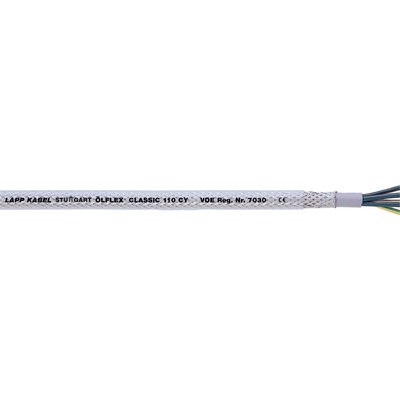

xThis ÖLFLEX® CLASSIC 110 CY control cable is flexible, screened, and features a PVC sheath, suitable for plant engineering and industrial machinery. Its EMC compliance and high degree of screening provide optimal performance in areas sensitive to electromagnetic interference.
Specifications
x| Compliance / Certifications | VDE reg. no. 7030 |
| Country of Origin | Germany |
| Flammability | Flame-retardent acc. to IEC 60332.1.2 |
| Temperature: Operating | -5°C to 70°C |
| Material: Inner Conductor / Core | Fine-wire strand made of bare copper wires |
| Material: Insulation / Inner sheath | PVC inner sheath / Grey Tinned-copper braiding |
| Material: Jacket / Outer Sheath | PVC outer sheath, transparent |
| Bending Radius | Occasional flexing: 20 x outer diameter Fixed installation: 6 x outer diameter |
| Diameter: External conduit size (mm) | 17.3mm |
| Weight | 702000g |
| Article Designation Size | 1135605 |
| Test Voltage | 4000 V |
