Description

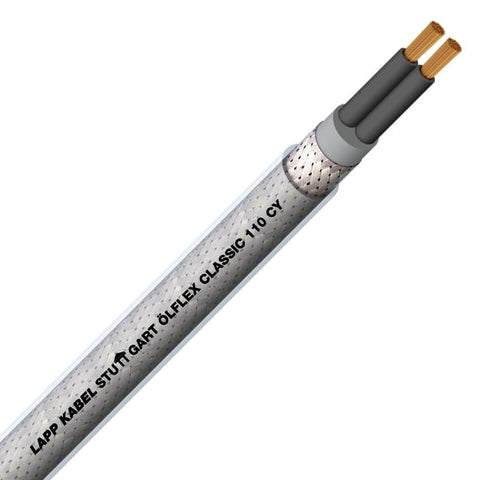

xThis is a PVC-insulated, screened control cable from the Ölflex Classic 110 CY series, configured with 2 x 1mm² conductors. The copper braid screening provides protection against electromagnetic interference, making it suitable for control and signal circuits in industrial machinery and panel wiring. It is typically used where flexible, shielded multicore cabling is required for automation and control applications.
Specifications
x| Article number | Number of cores and mm² per conductor | Outer diameter [mm] | Copper index (kg/km) | Weight (kg/km) |
|---|---|---|---|---|
| 1135752 | 2 X 0.5 | 7 | 41 | 75 |
Product Description
Benefits
- Space-saving installation due to small cable diameters
- High electrical performance due to 4 kV test voltage
Application range
- Plant engineering
- Industrial machinery
- Heating and air-conditioning systems
- Conveyor and transport systems
- In EMC-sensitive environments (electromagnetic compatibility)
Product features
- Flame-retardant according IEC 60332-1-2
- Good chemical resistance
Norm references / Approvals
VDE reg. no. 7030
Product Make-up
- Fine-wire strand made of bare copper wires
- PVC insulation LAPP P8/1
- Cores twisted in layers
- PVC inner sheath, grey
- Tinned-copper braiding
- PVC outer sheath, transparent
Core identification code
Black with white numbers acc. to VDE 0293-334
Conductor stranding
Fine wire according to VDE 0295, class 5/IEC 60228 class 5
Minimum bending radius
Occasional flexing: 20 x outer diameter
Fixed installation: 6 x outer diameter
Nominal voltage
U0/U: 300/500 V
Test voltage
4000 V
Temperature range
Occasional flexing: -5°C to +70°C
Fixed installation: -40°C to +80°C
