Description

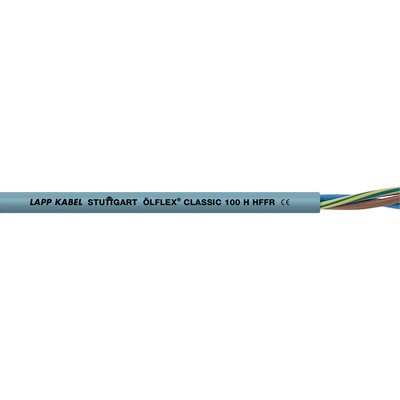

xThis halogen-free, flexible power and control cable offers oil resistance and flame retardance, suitable for public buildings and industrial facilities. It operates in a wide temperature range, providing safety in applications where high fire resistance is essential.
Specifications
x| Compliance / Certifications | Based on IEC 60227-5 / EN 50525-2-51 / Based on EN 50525-3-11 |
| Country of Origin | Germany |
| Flammability | Flame-retardant acc. to IEC 60332-1-2 / IEC 60332-3-24 / IEC 60332-3-25 |
| Temperature: Operating | -30°C to 70°C |
| Material: Inner Conductor / Core | Fine wire strand made of tinned-copper wires |
| Material: Insulation / Inner sheath | Halogen-free |
| Material: Jacket / Outer Sheath | Special halogen-free compound |
| Bending Radius | Occasional flexing: 15 x outer diameter Fixed installation: 4 x outer diameter |
| Diameter: External conduit size (mm) | 9.7mm |
| Weight | 167000g |
| Test Voltage | 4000 V |
| Colour | Grey |
| RAL Code | RAL 7001 |
