Description

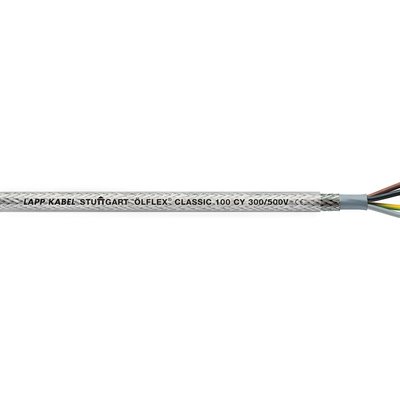

xThis flexible, screened PVC control cable is ideal for EMC-sensitive applications, including plant engineering and conveyor systems. It offers excellent shielding from electromagnetic fields and is flame-retardant. Its compact design supports space-saving installation, and it is suitable for various industrial uses.
Specifications
x| Compliance / Certifications | Based on EN 50525-2-51 / Based on EN 50525-2-11 |
| Country of Origin | Germany |
| Flammability | Flame-retardant acc. IEC 60332-1-2 |
| Temperature: Operating | -5°C to 70°C |
| Material: Inner Conductor / Core | Fine wire strand made of tinned-copper wires |
| Material: Insulation / Inner sheath | PVC |
| Material: Jacket / Outer Sheath | PVC |
| Bending Radius | Occasional flexing: 20 x outer diameter Fixed installation: 6 x outer diameter |
| Diameter: External conduit size (mm) | 9.7mm |
| Weight | 161000g |
| Test Voltage | 4000 V |
| Colour | Grey |
