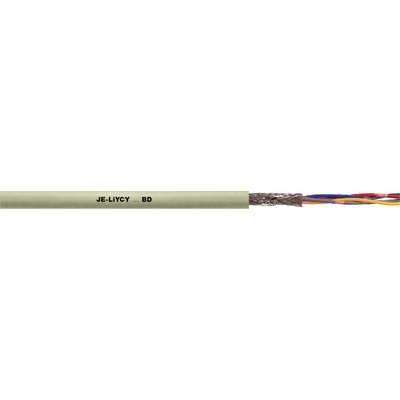

Lapp JE-LiYCY BD Screened data cable, 2x2x0.5mm²
Lapp JE-LiYCY BD Screened data cable, 2x2x0.5mm²

Lapp JE-LiYCY BD Screened data cable, 2x2x0.5mm²

This JE-LiYCY...BD screened data transmission cable is designed for industrial electronics, featuring a twisted-pair design that minimizes crosstalk and interference. Ideal for use in fixed installations in dry or damp conditions, it supports control and signal applications.
Vendor: Lapp Kabel
SKU: 0034200
Availability: Out Of Stock
Product type: Cable & Cable Management
Please hurry! Only 0 left in stock
Ask an expert
Description
Description
x
This JE-LiYCY...BD screened data transmission cable is designed for industrial electronics, featuring a twisted-pair design that minimizes crosstalk and interference. Ideal for use in fixed installations in dry or damp conditions, it supports control and signal applications.
Specifications
Specifications
x
Compliance / CertificationsIn accordance with DIN VDE 0815 type JE-LiYCY...BD
Country of OriginGermany
FlammabilityFlame-retardant acc. IEC 60332-1-2
Temperature: Operating-5°C to 50°C
Material7-Wire bare stranded copper conductor
Material: Insulation / Inner sheathPVC
Material: Jacket / Outer SheathPVC
Bending RadiusOccasional flexing: 15 x outer diameter Fixed installation: 5 x outer diameter
Diameter: External conduit size (mm)6.6mm
Weight 70000g
Test VoltageCore/core: 500 V / Core/screen: 2000 V
Documents
Documents
x
Download Datasheet
