Description

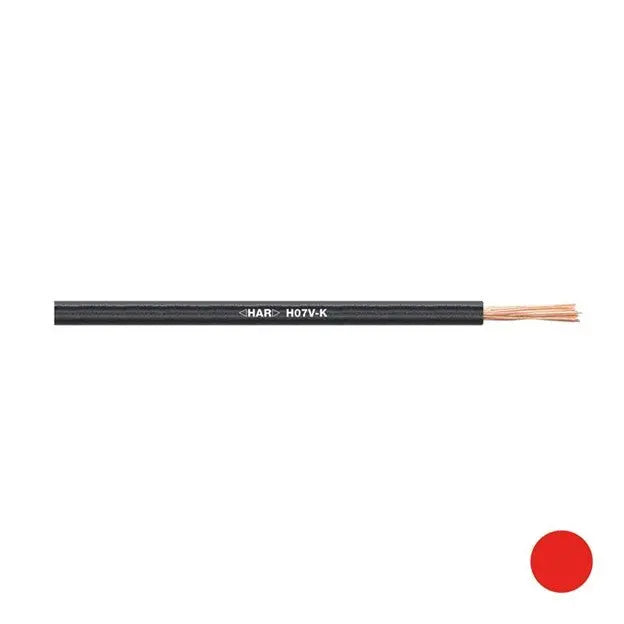

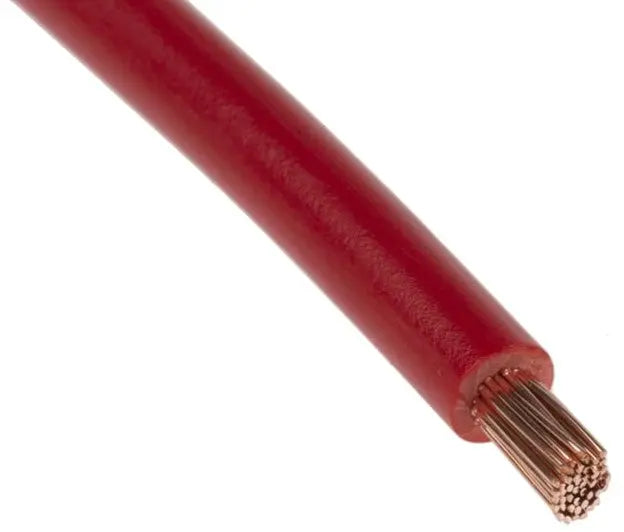

xThis flexible power cable features flame-retardant PVC insulation and fine-wire copper conductors. It is rated for 450/750V, suitable for fixed installations in ducts or plaster. The outer diameter ranges from 3.9 to 4.8 mm.
Specifications
x| Compliance / Certifications | |
| Country of Origin | Germany |
| Flammability | Flame-retardant acc. IEC 60332-1-2 |
| Material: Inner Conductor / Core | Fine copper wire strands |
| Material: Insulation / Inner sheath | PVC |
| Bending Radius | According to EN 50565-1 OD ≤ 8 mm: 4 x OD*/2 x OD**; 8 < OD ≤ 12 mm: 5 x OD*/3 x OD**; OD > 12 mm: 6 x OD*/4 x OD** |
| Drum Length / Coil Length | 100 m / ring |
| Weight | 45 kg / km |
| Test Voltage | 2500 V |
| Voltage Range/Rating | 450/750 V |
| Current Rating | VDE 0298 Part 4 / EN 50565-1 / VDE 0298-565-1 |
| Colour | Red (Core Colour) |
