Product Information

Product Name

H07V-K 1X16 BN

Product Description

Single core; 1X16; brown; Depending on length; U0/U: 450/750 V; PVC; HAR-certified; Fixed Installation

Article Number

4520036

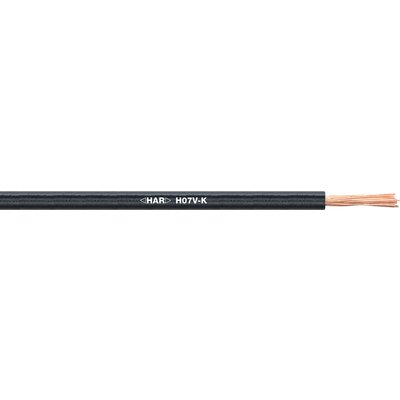

Product Images

Product Attributes

General Information

• Product type: Single core
• Weight: 170 kg/km
• Copper index: 153.600 kg/km
• Copper index (lb): 1032.000 lb/10,000 ft
• Single core packaging type: Depending on length
• Length per PU: 100 m

Electrical Characteristics

• Nominal voltage: U0/U: 450/750 V AC rms according to IEC
• Test voltage: 2.5 kV
• Current rating according to: VDE 0298-4
• Max. conductor resistance at 20°C: 1.21 Ω/km

Product Design

• Harmonised design: H07V-K
• Cable dimension: 1X16
• Conductor cross-section (mm²): 16 mm²
• Conductor material: Bare Copper
• Conductor design: IEC 60228 class 5: fine-wire
• Number of cores: 1
• Min. outer diameter: 6.7 mm
• Max. outer diameter: 8.1 mm
• Shape of cable: Round
• Core insulation base material: Polyvinylchloride
• Core insulation base material, shortname: PVC
• Single core color: brown
• Single core identification: Single-coloured

Product Characteristics

• Application area: Fixed Installation
• Minimum bending radius, fixed installation: 5 x outer diameter
• Minimum bending radius in mm, stationary: 40.5 mm
• Minimum bending radius with careful bending: 3 x outer diameter
• Temperature, fixed installation: -40 °C to 70 °C
• Installation temperature min.: 5 °C
• Installation temperature max.: 70 °C
• Storage temperature min.: 5 °C
• Storage temperature max.: 40 °C
• Flame-retardant: Yes
• Flame retardance according to: IEC 60332-1-2
• UV-resistant: No
• Weather resistant: No
• Ozone resistant: No
• Halogenfree: No
• Oil-resistant: No
• PWIS-free: No
