Black Heavy-Duty Rubber Flex 1X1.5

Product Information

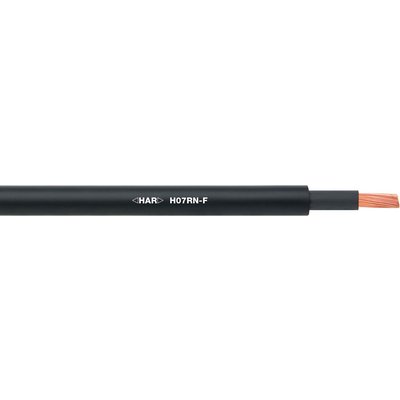

Type: H07RN-F, Single-core black rubber cable, medium mechanical stress, HAR approval 1X1.5

SKU: LAPP-1600096

Manufacturer Part Number: 1600096

Product Features

• Flame-retardant according to IEC 60332-1-2
• Oil-resistant according to EN 60811-404

Benefits

• For mechanically more demanding applications
• 1000 V AC at protected + static laying
• Arrangements made of single-core, rubber-sheathed cables H07RN-F can be used for short circuit-proof and short-to-ground-proof installations in accordance with IEC 60364-5-52/ HD 60364-5-52/ VDE 0100 Part 520

Application Range

• Handheld and power supply devices according to EN 50565-2
• Medium, mechanical stress
• Industrial, agricultural use
• In dry, damp and wet rooms as well as for fixed installation e.g. on the plaster

Product Make-up

• Bare copper wire according to HAR
• Core insulation: rubber compound, type EI 4
• Outer sheath: rubber compound, type EM2

Product Specifications

Product Files

• Datasheet
