Description

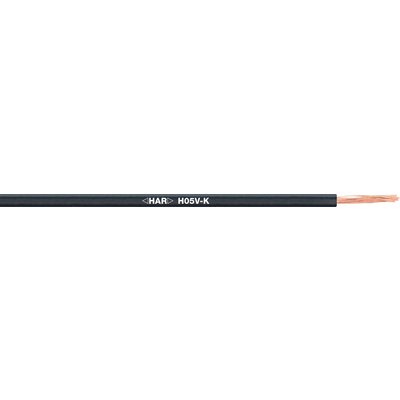

xThis single-core H05V-K cable is designed for use in control panels and device wiring. It is flame-retardant, features fine copper conductor strands, and is insulated with PVC. It is suited for protected installations in tubes, lighting equipment, and signal systems, operating at 300/500V.
Specifications
x| Compliance / Certifications | Cable type certification acc. EN 50525-2-31 / No cable type certified core insulation colour according to EN 50525-1/VDE 0285-525-1: transparent |
| Country of Origin | Germany |
| Flammability | Flame-retardent acc. to IEC 60332.1.2 |
| Material: Inner Conductor / Core | Fine-wire strand made of bare copper wires |
| Material: Insulation / Inner sheath | PVC |
| Bending Radius | 4 x outer diameter (OD) for normal use; 2 x OD for cautions bending |
| Drum Length / Coil Length | 100 m / ring |
| Weight | 15000g |
| Test Voltage | 2000 V |
| Colour | Dark Blue / White (Core Colour) |
