Description
xCapacitive sensing technology provides a more responsive touch interface than its predecessor, resistive touch. As the screen is equipped with controllers that sense the point of contact, which allows for multiple touch points that are registered at any given moment.

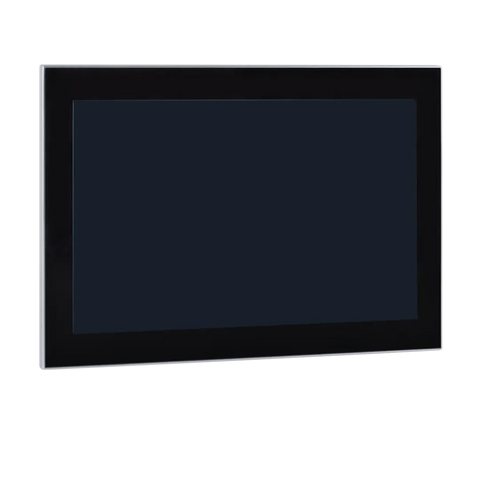

\nCapacitive Touch Screen LCD monitors provide reliable operations monitoring in robust locations or factory environments. The front panels are built with an IP65 waterproof rating, can withstand high temperatures whilst maintaining screen clarity and shock / shake resistant. Making the Capacitive Touch Screen LCD monitors the right choice for the severe conditions found in an automation environment and are certified for hazardous duty.
System Parameters
\n\n\n\n
CPU: Intel® Core™i5-7200U
\n\nBase Frequency: Dual Core 2.5 GHz
\n\nL3 Cach: 3MB
\n\nChipset: Integrated PCH-LP
\n\nMemory: 1x 204 - pin DDR3L - 1333MHz SODIMM, support up to 8GB
\n\nStorage Medium: 1x 2.5” SATA bay + 1x mSATA
\n\nLAN: 2x Intel i210 1000Mbps RJ-45 with surge protection, lightning protection design and 15KV ESD protection
\n\nAudio: Realtek ACL662 Audio controller
\n\nUSB: 4x USB3.0 / 2.0 / 1.1
\n\nCOM: 2x RS - 232 / RS - 485 with surge protection, RS485 support automatic flow control
\n\nExpansion Slot: 1x Mini-PCIe slot, extensible 3G, WIFI wireless card. 1x Easy BUS slot

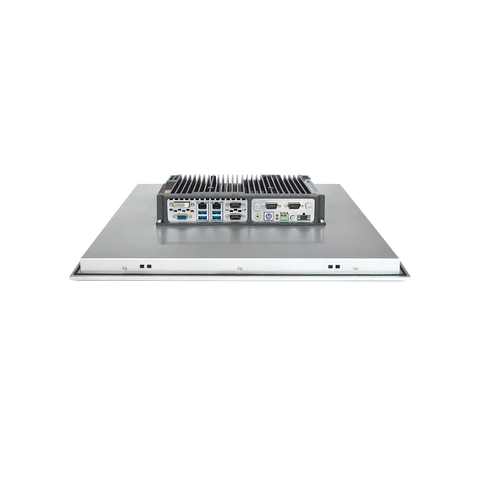

\n\nRear I/O: DVI-I / 2 x GLAN / 4x USB / 2x COM / 2x PS2 / Line-out / Mic-in
\n\nOS: Windows 7 / Windows 7 Embedded / Windows 8 / Windows10 (Preloaded) / Ubuntu / VXWORKS / QNX
\n\nInput Voltage: 12 - 24V DC ±10%, reverse polarity protection, overvoltage protection, overcurrent protection
\n\nBacklight: LED
\n\nMTBF: 30000hrs
\n\nLuminance: 250CD / m2
\n\nContrast Ratio: 1000:1
\n\nViewing Angle: (L) 85 / (R) 85 / (T) 80 / (B) 80
\n\nTouchscreen Type: Multi-point capacitive touch screen
\n\nMulti-touch: 10 points (windows system)
\n\nSurface Hardness: Mohs’ Number 7
\n\nWork Temperature: 0–45°C
\n\nStorage Temperature: -20–60°C
\n\nRelative Humidity: 5–95% (Non condensation)
\n\nIngress Protection: Front panel IP65
