IPFlex CTP Touch Panel, 15.0", 8GB RAM, 256GB SSD, Win 10

Capacitive sensing technology provides a more responsive touch interface than its predecessor, resistive touch. As the screen is equipped with controllers that sense the point of contact, which allows for multiple touch points that are registered at any given moment.

Capacitive Touch Screen LCD monitors provide reliable operations monitoring in robust locations or factory environments. The front panels are built with an IP65 waterproof rating, can withstand high temperatures whilst maintaining screen clarity and shock / shake resistant. Making the Capacitive Touch Screen LCD monitors the right choice for the severe conditions found in an automation environment and are certified for hazardous duty.

System Parameters

CPU: Intel® Core™i5-7200U

Base Frequency: Dual Core 2.5 GHz

L3 Cach: 3MB

Chipset: Integrated PCH-LP

Memory: 1x 204 - pin DDR3L - 1333MHz SODIMM, support up to 8GB

Storage Medium: 1x 2.5” SATA bay + 1x mSATA

LAN: 2x Intel i210 1000Mbps RJ-45 with surge protection, lightning protection design and 15KV ESD protection

Audio: Realtek ACL662 Audio controller

USB: 4x USB3.0 / 2.0 / 1.1

COM: 2x RS - 232 / RS - 485 with surge protection, RS485 support automatic flow control

Expansion Slot: 1x Mini-PCIe slot, extensible 3G, WIFI wireless card. 1x Easy BUS slot

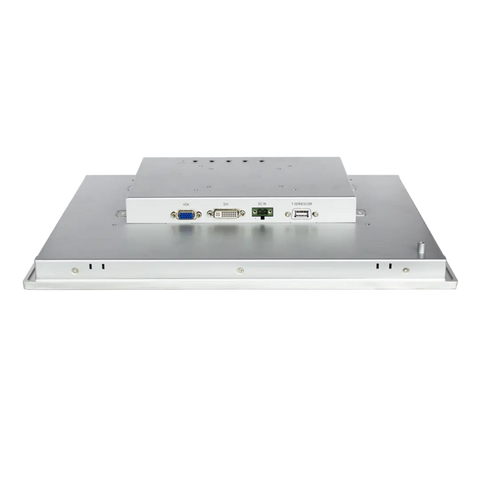

Rear I/O: DVI-I / 2 x GLAN / 4x USB / 2x COM / 2x PS2 / Line-out / Mic-in

OS: Windows 7 / Windows 7 Embedded / Windows 8 / Windows10 (Preloaded) / Ubuntu / VXWORKS / QNX

Input Voltage: 12 - 24V DC ±10%, reverse polarity protection, overvoltage protection, overcurrent protection

Backlight: LED

MTBF: 30000hrs

Luminance: 250CD / m2

Contrast Ratio: 1000:1

Viewing Angle: (L) 85 / (R) 85 / (T) 80 / (B) 80

Touchscreen Type: Multi-point capacitive touch screen

Multi-touch: 10 points (windows system)

Surface Hardness: Mohs’ Number 7

Work Temperature: 0–45°C

Storage Temperature: -20–60°C

Relative Humidity: 5–95% (Non condensation)

Ingress Protection: Front panel IP65
