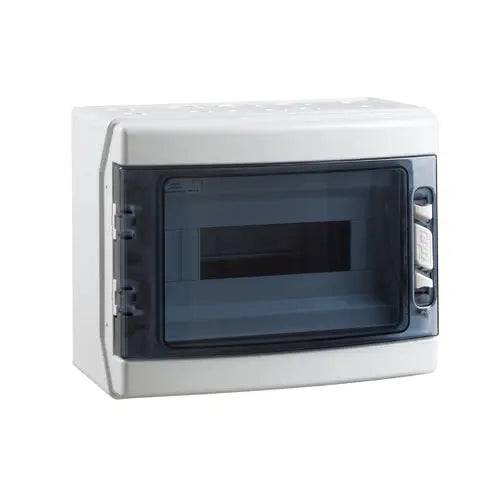

IDE Distribution box, 1x12 DIN rail, 246x310x148 Part number CDN12PT

Din rail mount IP65 enclosure - Excludes Earth / Nuetral Bar. Exterior dimensions (Height x Width x Depth): 246x310x148mm. Halogen-free plastic materials. Frame and base: ABS. Recommendend for outdoor use: UV protection under ISO standard 4892-2, Method A: 500h
Vendor: IDE
Rubicon Industrial Technology is the exclusive South African distributor for IDE.
Availability: In stock
Product type: Control Panel
Please hurry! Only 38 left in stock
Description
Description
x
Din rail mount IP65 enclosure - Excludes Earth / Nuetral Bar. Exterior dimensions (Height x Width x Depth): 246x310x148mm. Halogen-free plastic materials. Frame and base: ABS. Recommendend for outdoor use: UV protection under ISO standard 4892-2, Method A: 500h
Specifications
Specifications
x
Product typeABS watertight distribution boxes (Sealable)
Exterior dimensions (Height x Width x Depth)246x310x148 mm
Number of modules1x12 DIN rail
InstallationSurface
ColorRAL 7035
Weight1.42 kg
Cable entry (Top)6xM20 - 2xM25 - 2xM32 - 1xM40
Cable entry (Bottom)6xM20 - 2xM25 - 2xM32 - 1xM40
Cable entry (Internal)4xM25
ComponentsOblong rear: 2xOB 25/32/25
MaterialsHalogen-free plastic materials, Frame and base: ABS, UV protection under ISO standard 4892-2, Method A: 500h
Lid-window-door materialTinted PC, UV protection
Degree of protectionIP65
Resistance to impactIK08
Glow wire resistance650 ºC
Ball pressure test70 ºC
Ambient temperature range-25 ºC / +40 ºC
Maximum operating voltage1000 V AC / 1500 V DC
Rated current10A 250V 100W
Double insulationClass II
Directive2014/35/EU
StandardsIEC 62208
