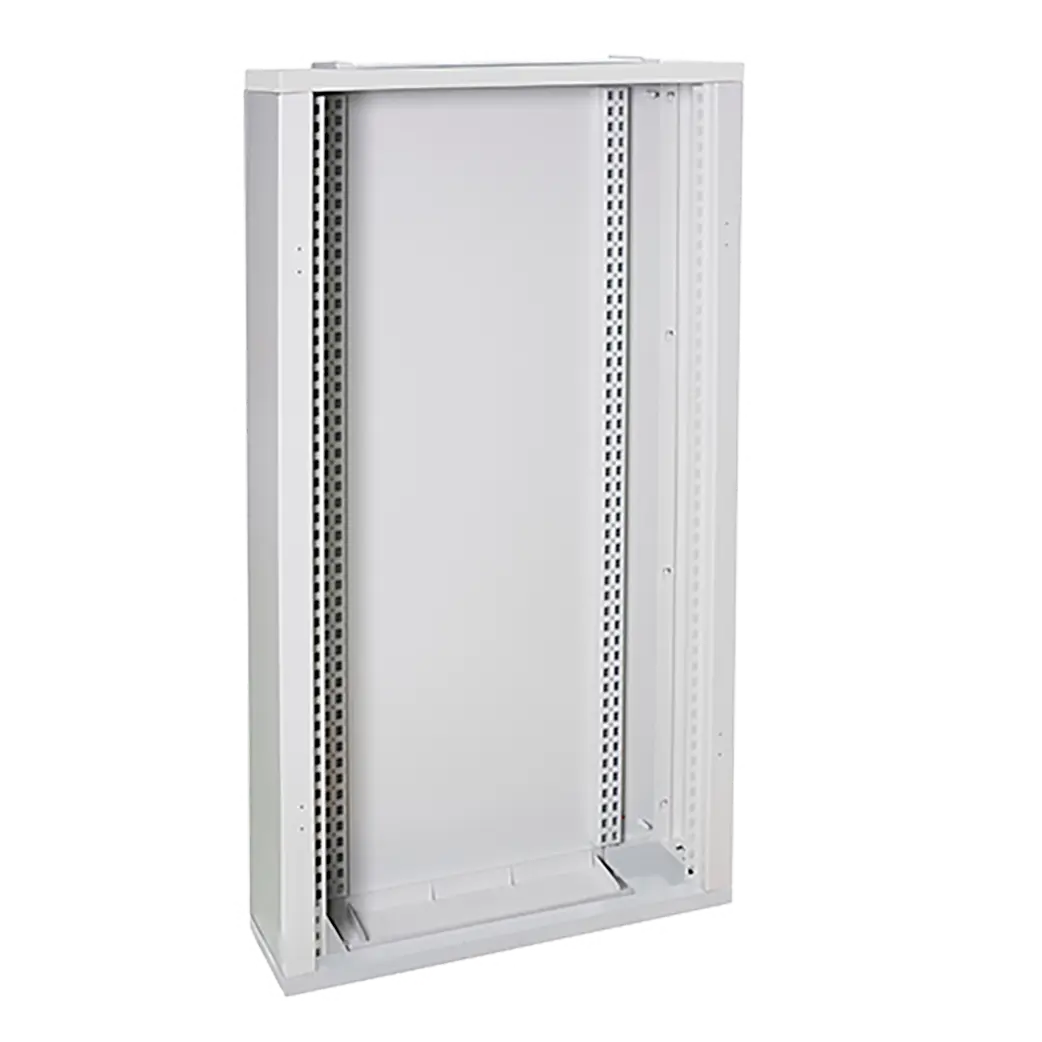

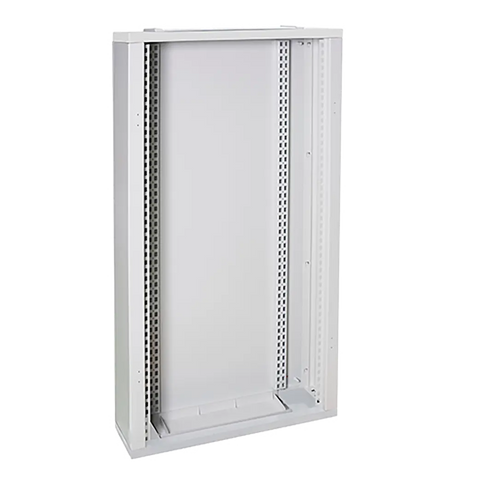

IDE Combinable distribution cabinet w/o door, 1310x670x212mm

IP40-IP65 Steel distribution cabinets (48-192 modules), IP40 COMBINABLE DISTRIBUTION CABINET 144-192 MOD.

The material used is:

\n
• Body, sides, top and bottom covers for surface cabinets and frames for flush-fit cabinets manufactured in cold-rolled steel EN10130+A1 with a thickness of 1,2 mm.
\n
• Body for flush-fit cabinets manufactured in galvanised steel with a thickness of 1,2 mm.
\n
• Opaque doors manufactured in cold-rolled steel EN10130+A1; 1-mm thick surface cabinets and 1,2-mm thick flush-fit cabinets and transparent doors manufactured in tinted 4-mm tempered safety glass.
\n

IP30-IP40 combinable surface cabinets. They are supplied disassembled in a single packaging that contains body, sides, top and bottom cover, cable entry cover and accessory bag. The doors are supplied separately if requested, with both locks assembled and with accessory bag. IP40-IP65 compact surface cabinets and IP40 flush-fit cabinets. They are supplied assembled in individual packaging that contains the cabinet with the door and the locks assembled, and an accessory bag. Lids and DIN rails. They can be ordered as a Kit: Lids + DIN rails. Separately: modular or blind lids, as well as DIN rails plus assembly supports for surface cabinets (48013) or for flush-fit cabinets (48014).
