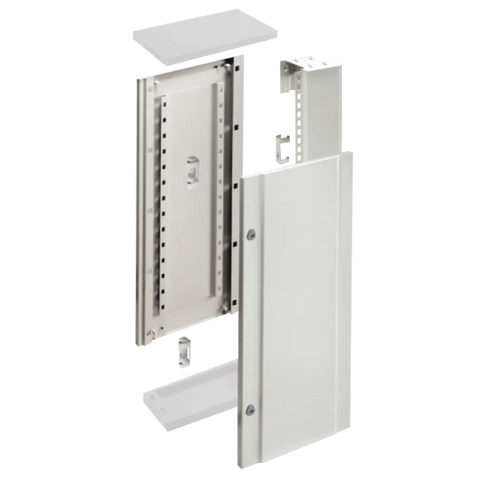

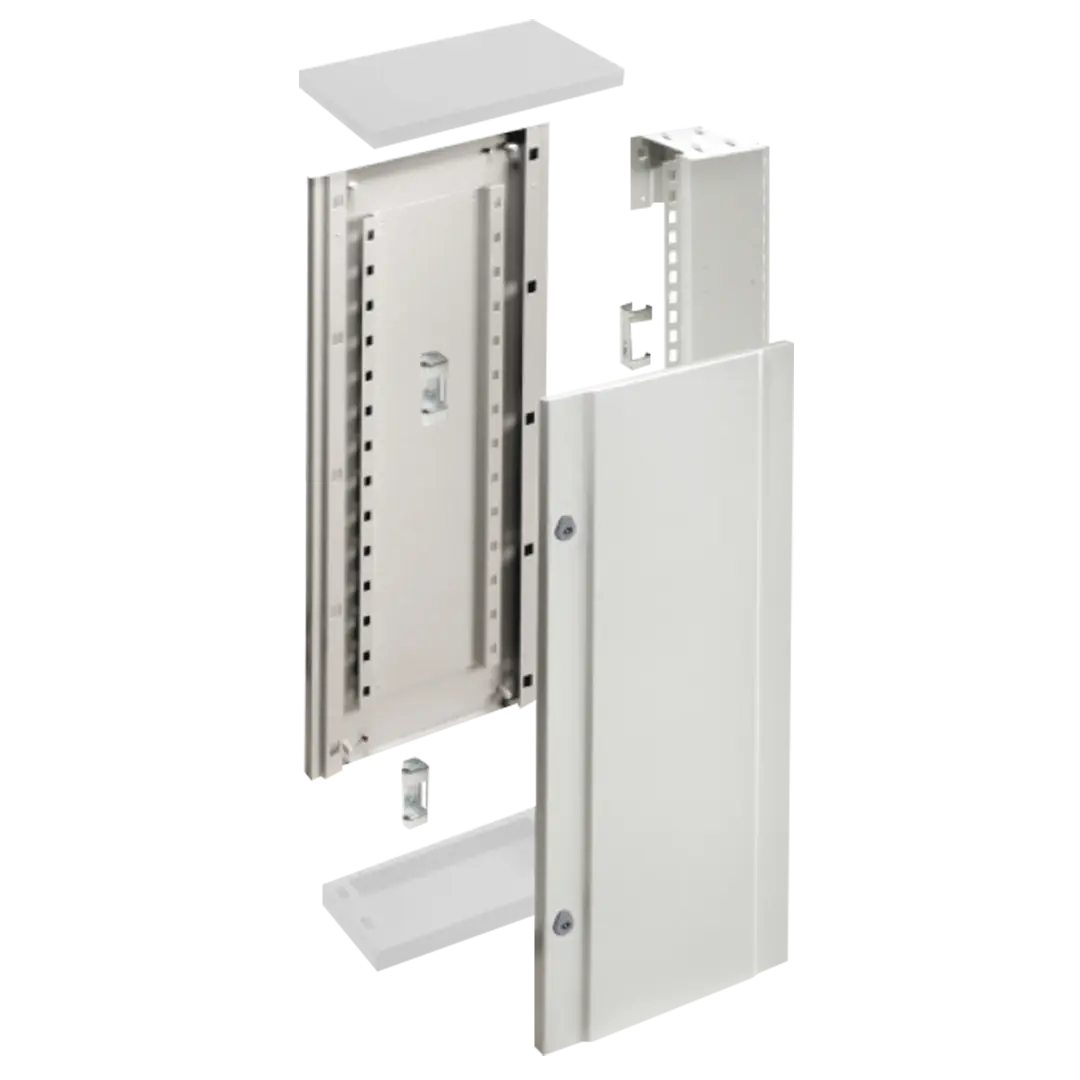

Side auxiliary module for 40ENL96-120 cabinet with Auxiliary module and ATLANTIC: 40ENL cabinets. Dimensions of (HeightxWidthxDepth) 910x350x212 mm and the material used is RAL 9003 painted sheet steel. Opaque door with standard 5-mm double bit lock. Usable space: (HeightxWidth) 850x209 mm. Features used for the installation of busbars, switches, control equipment etc, leaving more space inside the cabinet. It does not require specific recycling operations.
Tariff No | 85.38.10.00 |
Part Depth (mm) | 212mm |
Part Width (mm) | 350mm |
Part Height (mm) | 910mm |
Material: Product | Rolled steel |
