Description

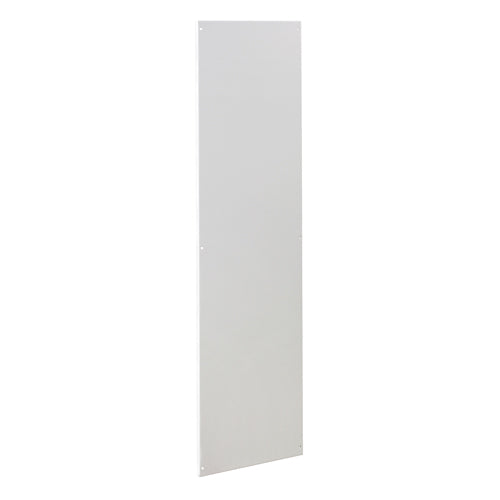

xThese protective covers are designed for fitting over busbar systems with a height of 450 mm, shielding live conductors from accidental contact. They are used in control panels and switchboards where busbar distribution is present, providing a barrier between personnel and energised parts during operation and maintenance. Typical application is within low-voltage distribution assemblies constructed to panel-building standards.
Specifications
x| Resistance to Impact - Opaque Door | IK10 |
| Resistance to Impact - Transparent Door | IK09 |
| Ambient Temperature Range | -25 ºC / +40 ºC |
| Body Material | 1.2-mm thick EN10130+A1 cold-rolled steel |
| Opaque Door Material | 1.2-mm thick EN10130+A1 cold-rolled steel |
| Transparent Door Material | 4-mm thick tempered safety glass |
| Modular Capacity for 1810 mm Cabinets | 192 to 240 modules |
| Modular Capacity for 2110 mm Cabinets | 216 to 288 modules |
| Standards Compliance | According to low tension directive 2014/35/EU, Norm: UNE-EN 62208 |
