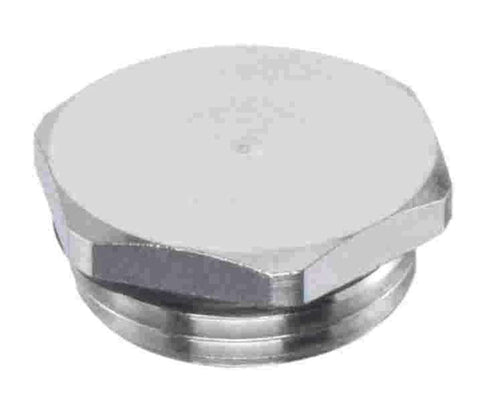

Harting Dummy plug with o-ring, M25, metal, wrench size 28

Product Overview

The accessory blanking piece M25x1.5 (article no. 19 00 000 5071) is a metal dummy plug designed to seal unused cable entries on Han series connector hoods and housings. Features M25x1.5 metric thread construction with 32.3mm external diameter for secure installation and environmental protection in industrial connector applications.

Key Features:

• M25x1.5 metric thread for secure installation
• Metal construction for durability and environmental protection
• 32.3mm external diameter with A/F 28 wrench size
• Dummy plug design for sealing unused cable entries
• Compatible with Han series connector housings
• Professional-grade accessory for industrial applications
• Prevents ingress of dust, moisture, and contaminants
• Easy installation and removal with standard tools

Applications:

Han series connector installations, industrial automation panels, control cabinets, unused cable entry sealing, environmental protection applications, manufacturing equipment, process control systems, metric cable entry sealing.

Technical Specifications:

• Category: Accessories for industrial connectors
• Type: Dummy plug/blanking piece
• Thread: M25x1.5 metric thread
• Material: Metal construction
• External Diameter: 32.3mm
• Wrench Size: A/F 28 (28mm across flats)
• Dimensions: 31.85mm diameter x 10mm length
• Compatibility: Han series connector housings
• Installation: Threaded attachment to connector housings

Functionality:

Seals unused M25 metric cable entries on Han series connector hoods and bases to maintain environmental protection ratings. The M25x1.5 metric thread ensures secure installation while preventing ingress of dust, moisture, and other contaminants that could compromise system reliability.

System Benefits:

• Maintains IP protection ratings of connector assemblies
• Prevents contamination of unused cable entries
• Metal construction provides long-term durability
• Standard wrench size (A/F 28) for easy installation
• Cost-effective solution for sealing unused openings
• Supports system modularity and future expansion

Standards:

Industrial connector accessory standards, IP protection rating maintenance standards, metric thread specifications.

Compliance:

Compatible with Harting Han series connector environmental specifications, industrial automation standards, metric threading standards.
