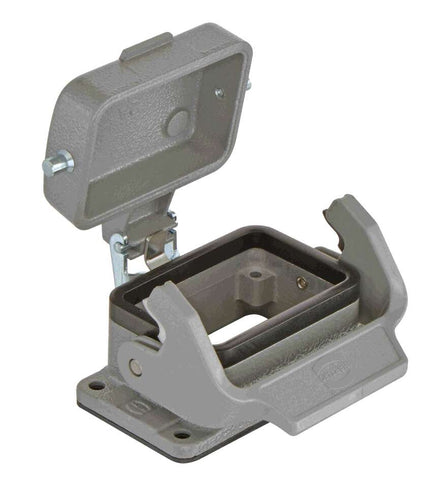

Harting Bulkhead housing with metal cover, size 6B

Product Overview

The Han B Base Panel 1 Lever Metal Cover is a premium bulkhead mounted housing from HARTING's Han® B series, featuring enhanced protection with an integrated metal cover. This single-lever housing provides superior mechanical protection and secure panel mounting for Han B connector inserts in the most demanding industrial environments.

Key Specifications

• Article Number: 09 30 006 0318
• Series: Han® B
• Category: Hoods/Housings
• Type: Bulkhead mounted housing with metal cover
• Size: 6B
• Construction: Low construction design
• Locking Type: Single locking lever
• Protection: Integrated metal cover

Technical Features

• Material: Aluminum die-cast housing
• Surface: Powder-coated finish
• Color: RAL 7037 (dust grey)
• Seal Material: NBR
• Locking Components: Polycarbonate (PC) and stainless steel
• Metal Cover: Enhanced mechanical protection
• Han-Easy Lock®: Integrated locking system
• Operating Temperature: -40°C to +125°C

Enhanced Protection Features

• Metal Cover: Additional mechanical protection for connector interface
• Robust Construction: Superior impact and environmental resistance
• Industrial Grade: Designed for harsh industrial environments
• Panel Integration: Secure bulkhead mounting with protective cover

Environmental & Safety Ratings

• IP Rating: IP65 protection against dust and water jets
• UL Type Rating: UL 50/UL 50E Type 4, 4X, 12
• Temperature Range: -40°C to +125°C operating temperature
• Material Flammability: V-0 class (locking levers, UL 94)

Applications & Usage Ideal for demanding applications requiring maximum protection and secure panel mounting. The metal cover provides additional mechanical protection against impact, vibration, and harsh environmental conditions. Perfect for outdoor applications, mobile equipment, and industrial environments where extra protection is essential.

Compatibility

• Series Compatibility: Han® B series inserts and accessories
• Insert Accommodation: Compatible with 6B size inserts
• Mounting Type: Bulkhead/panel mounting with metal cover protection
• Locking System: Single lever for easy operation

Certifications & Compliance

• UL Listed: UL 50/UL 50E certified
• RoHS Compliant: Meets environmental standards
• IEC Standards: Connector according to IEC 61984

Download existing graphical data for this product:

• Product Datasheet
• Product Declaration Certificate
• EPLAN Data Portal - CAD Models & Technical Data
