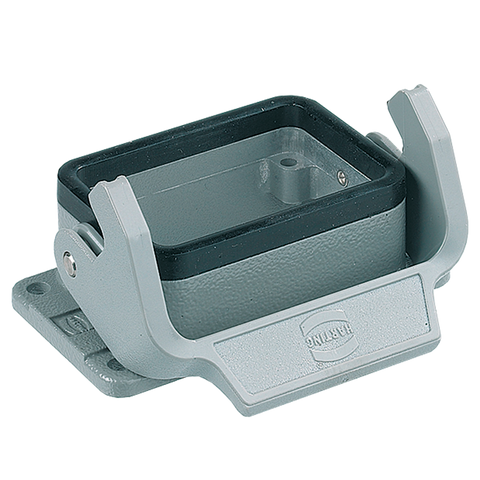

Harting Bulkhead housing, single locking, dust grey, size 6B

Product Overview

The Han 6B-HBM-SL is a bulkhead mounted housing from HARTING's Han® B series, designed for panel mounting applications in demanding industrial environments. This single-lever housing provides secure mounting and reliable protection for Han B connector inserts while ensuring easy mating and unmating operations through panels and enclosures.

Key Specifications

• Article Number: 09 30 006 0301
• Series: Han® B
• Category: Hoods/Housings
• Type: Bulkhead mounted housing
• Size: 6B
• Construction: Low construction design
• Locking Type: Single locking lever
• Installation Method: Panel/bulkhead mounting

Technical Features

• Material: Aluminum die-cast housing
• Surface: Powder-coated finish
• Color: RAL 7037 (dust grey)
• Seal Material: NBR
• Locking Components: Polycarbonate (PC) and stainless steel
• Han-Easy Lock®: Integrated locking system
• Operating Temperature: -40°C to +125°C

Environmental & Safety Ratings

• IP Rating: IP65 protection against dust and water jets
• UL Type Rating: UL 50/UL 50E Type 4, 4X, 12
• Temperature Range: -40°C to +125°C operating temperature
• Material Flammability: V-0 class (locking levers, UL 94)

Applications & Usage Ideal for applications requiring secure panel mounting of Han B series connectors. The bulkhead design allows for reliable connections through control cabinet walls, equipment panels, and enclosure barriers. Suitable for industrial automation, machinery control, and process equipment where through-panel connectivity is required.

Compatibility

• Series Compatibility: Han® B series inserts and accessories
• Insert Accommodation: Compatible with 6B size inserts
• Mounting Type: Bulkhead/panel mounting configuration
• Locking System: Single lever for easy operation

Certifications & Compliance

• UL Listed: UL 50/UL 50E certified
• RoHS Compliant: Meets environmental standards
• IEC Standards: Connector according to IEC 61984
