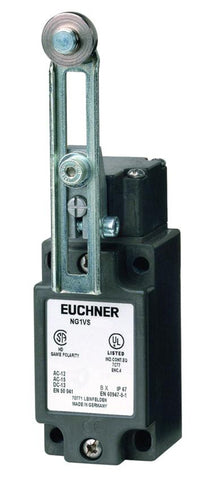

xThe NG1VB-510-M is an adjustable limit switch with a plastic roller lever arm, fitted with a snap-action contact block providing 1 NC and 1 NO contact. The roller lever arm length is adjustable between 28 and 78 mm, allowing the actuating point to be set to suit the application, and operation is possible at approach speeds from 0.5 to 120 m/min. The housing is anodized die-cast alloy with an IP67 degree of protection, and the switch connects via a single M20 x 1.5 cable entry, suiting use on machinery and panels where position sensing of moving parts is required in demanding environments.
Key specifications
- Connection: 1 x M20 x 1.5
- Operating temperature: -25 to 80 °C
- Material: Anodized die-cast alloy
Specifications
x
| 510 | Snap-action switching contact 1 NC + 1 NO |
Adjustment options
Horizontal and vertical 4 x 90°
Switching direction
Switches to the right, left or both sides
Dimension Drawings
Dimensional Drawings
| A | Operating point |
| B | End position |
| C | Reset point |
Connection Examples
Shift Travel Diagrams
| A | Operating point |
| B | End position |
| C | Reset point |
 |
Contacts closed |
 |
Contacts open |
Technical Data
Approvals
Electrical Connection Values
| Connection cross section | 0.34 - 1.5 mm² |
| Rated insulation voltage Ui | 250 V |
| Rated impulse withstand voltage Uimp | 2.5 kV |
| Utilization category AC-12 | 10 A 230 V |
| Utilization category AC-15 | 6 A 230 V |
| Utilization category DC-13 | 6 A 24 V |
| Short circuit protection according to IEC 60269-1 | 6A gG |
| Switching current min. at DC 24V | 10 mA |
| Thermal rated current Ith | 6 A |
Mechanical Values and Environment
| Approach speed | 0.5 - 120 m/min |
| Connection type | 1 x M20 x 1.5 |
| Number of door position NC contacts | 1 |
| Number of door position NO contacts | 1 |
| Actuating element | Slide bearing plastic, Roller lever arm adjustable (d roller = 18 mm, length = 28 - 78 mm) |
| Actuating force | min. 15 N |
| Installation orientation | any |
| Mechanical life | 30 x 10⁶ |
| Contact bounce time | max. 3 ms |
| Switching principle | Snap-action switching contact |
| Schließzeit | max. 4 ms |
| Degree of protection | IP67 |
| Ambient temperature | -25 to 80 °C |
| Contact material | Silver alloy, gold flashed |
| Housing material | Anodized die-cast alloy |
