Description

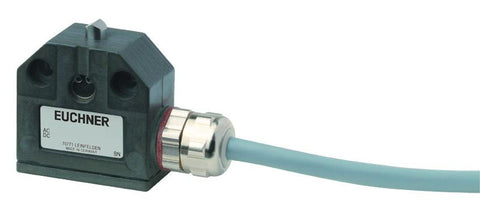

xThis precision single limit switch is used to detect the position of moving machine parts, providing a signal for control systems when a component reaches a defined point of travel. It is typically fitted to machine guards, actuators or linear motion assemblies within industrial automation panels and equipment. The device forms part of Euchner's range of field sensing components used for position feedback and safety-related switching tasks.
Specifications
x| Plunger material | stainless steel |
| Connection cross section | 0.5 mm² |
| Rated insulation voltage Ui | 250 V |
| Rated impulse withstand voltage Uimp | 2.5 kV |
| Utilization category AC-15 DC-13 | 2 A 230 V |
| Approach speed | 0.01 ... 8 m/min |
| Connection type | 1 x Cable (4-pin) |
| Number of door position NC contacts | 1 Changeover contact |
| Number of door position NO contacts | 1 (Changeover contact) |
| Actuating element | Ball plunger |
| Steel ball diameter | 4 mm |
| Actuating force | 15 ... 20 N |
| Installation orientation | any |
| Mechanical life | 10 x 10⁶ |
| Degree of protection | IP67 |
| Ambient temperature | -5 ... +80 °C |
| Housing material | Anodized die-cast alloy |
| Contact material | Silver alloy, gold flashed |
| Additional feature | Connecting cable, 5 m |
