Euchner EGT1/4A5000 Single hole fixing limit switch, 1NO, 5m cable

The EGT1/4A5000 is a single-hole fixing limit switch from Euchner using a reed contact switching principle, fitted with a ball plunger (short) actuating element and a 5 m PUR two-core cable. It provides one normally open contact and mounts via an M14 x 1 threaded section in stainless steel, with...

Vendor: Euchner

Rubicon Industrial Technology is the exclusive South African distributor for Euchner.

Availability: Out Of Stock

Product type: Field Sensing & Connectivity

Please hurry! Only 0 left in stock

Description
Specifications
Documents
Alternatives

EGT1/4A5000 (Order no. 001368)

Product Overview

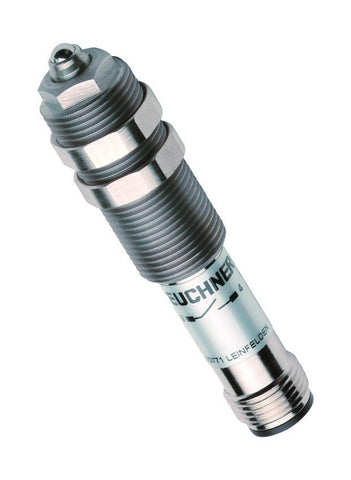

Precision single hole fixing limit switch EGT1/4

With reed contact
Plunger material: stainless steel
Any installation orientation
Cable length: 5 m

Links

Description
Technical data
Downloads
CAD data

Description

Switching element

Reed contact, 1 NO contact

Never switch incandescent lamps. Not even for test purposes. Single hole fixing limit switches must not be used as an end stop.

Dimension drawing

Wiring diagram

Dimensional Drawings

Connection Examples

Technical Data

Approvals

Electrical Connection Values

Connection cross section	0.5 mm²
Rated insulation voltage Ui	250 V
Utilization category AC-12	0.03 A 230 V
Utilization category DC-13	0.3 A 24 V
Short circuit protection according to IEC 60269-1	0.4A gG
Switching voltage min.	1 V
Switching current min. at 24 V	1 mA

Mechanical Values and Environment

Approach speed	max. 8 m/min
Connection type	PUR cable (two-core)
Number of NO contacts	1
Design	Thread M14 x 1
Actuating element	Ball plunger (short)
Actuating force	16 N
Installation orientation	any
Cable length	5 m
Mechanical life	30 x 10⁶
Switching principle	Reed contact
Degree of protection	IP68
Cable ambient temperature (static)	-25 ... +80 °C
Sleeve material	Plastic
Contact material	Rhodium
Threaded section material	stainless steel
Repeat accuracy (absolute)	±0.01 mm (on axial actuation in the retracted state after approx. 2,000 operating cycles)

Downloads

Complete Package

Download all important documents with a single click.

Content:

The operating instructions and any additions to the operating instructions or brief instructions
Any data sheets to supplement the operating instructions
The declaration of conformity

Download Complete Package (ZIP, 2.0 MB)

Single Documents

Declarations of conformity

EU declaration of conformity

Ordering Data

Order number	001368
Item designation	EGT1/4A5000
Gross weight	0.23 kg
Global Trade Item Number (GTIN)	4047048001176
Customs tariff number	85365019000
ECLASS	27-27-06-01 Position switch (Type 1)
