Description

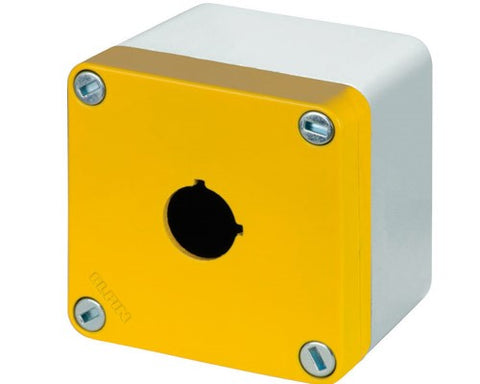

xThis yellow aluminium push-button enclosure is designed for safety applications, featuring a single Ø 22 mm hole and protection against impact and environmental factors (IP66/IP69). Its durable construction makes it ideal for use in machinery control systems, ensuring long-term reliability even in demanding conditions.
Specifications
x| IP Rating | IP66 - IP69 |
| Tariff No | 85381000 |
| Country of Origin | China |
| Compliance/Certifications | CE / CSA / EAC / IEC-EN62208 / UL / UL508 / CSA C22.2 No.14-13 |
| Temperature: Operating | -40° to +100°C |
| Part Depth (mm) | 65mm |
| Part Width (mm) | 85mm |
| Part Height (mm) | 85mm |
| Diameter (mm) | 22mm |
| Weight (g) | 382g |
| Tightening Torque | 3 Nm |
| Material: Product | Aluminum |
| Material: Gasket | Nitrile rubber |
| Material: Screw | Zamak / Zinc Alloy |
| Screw Type | M10 - slotted head type 6mm flat blade |
| Warranty | 18 Months |
| Colour | Yellow / Grey |
