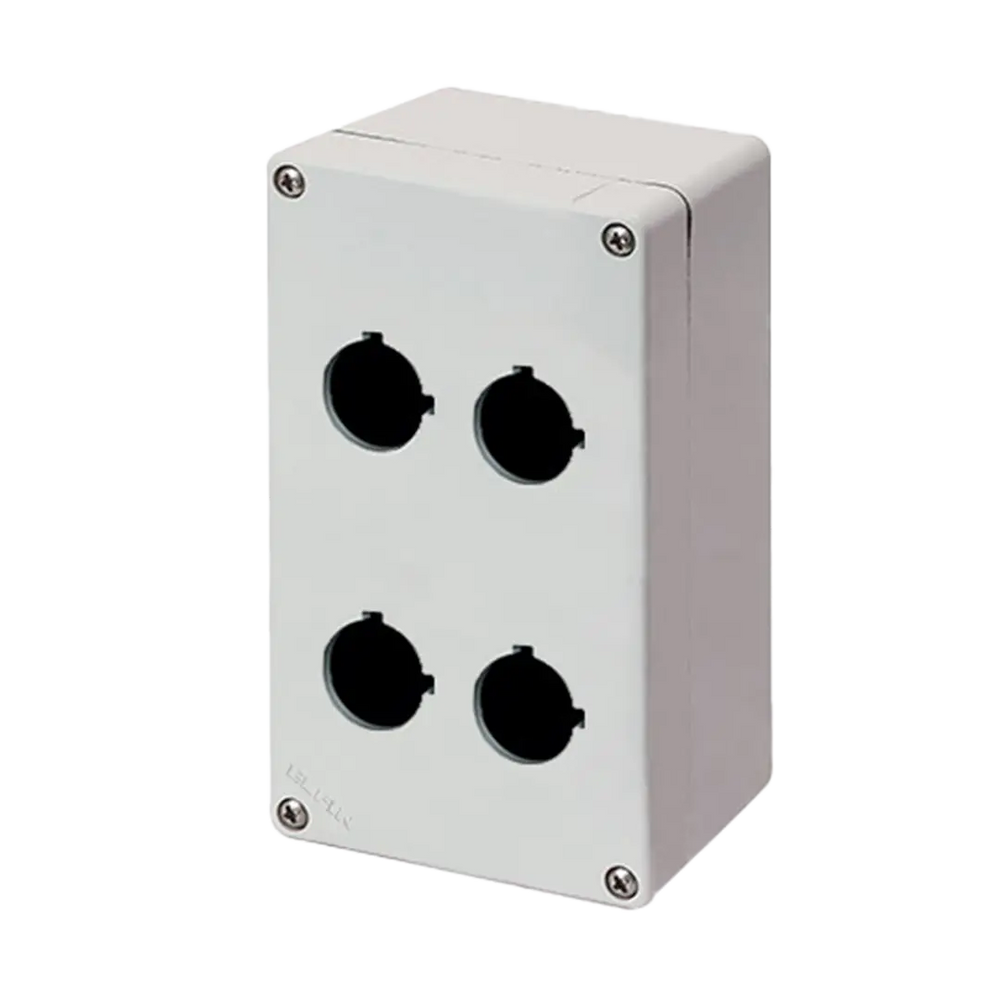

Elfin Push-button enclosure, 4 hole Ø 22, 92x152x70mm

SKU / Article No. 040C0915-7P4

EAN / Barcode - None -

Product Type Control Panel

R 489.47

In Stock

View Full Product Details on Elfin 💬 Ask an Expert - Technical Support Available

Product Description

\nNew Elfin, while projecting, obviously considers all the technical aspects but also the design and the aesthetics, so as to always perfectly integrate the equipment that the enclosure will house. Moreover, there are many possibilities to customise the products according to customer’s specifications. Strong and lightweight enclosures, suitable for any use; M4 a tested set of enclosures manufactured in different models.\n

Technical Specifications

IP Rating / Detailed	IP66 - IP69K - TYPE 4, 4X (IEC-EN60529 - NEMA 250)
IP Rating	IP66 / IP69K
Tariff No	85381000
Compliance/Certifications	CSA / CSA C22.2 No.14-13 / CE / EAC IEC-EN62208 / UL / UL508
Temperature: Operating	-40°C to 100°C
Weight (g)	424g
Tightening Torque	2.5Nm
Material: Product Housing	Aluminium
Material: Gasket	Cork rubber
Material: Screw	Stainless steel AISI 304
Screw Type	M4 - cross head Phillips 2
Warranty	18 Months
Colour	Grigio
RAL Code	RAL7035
