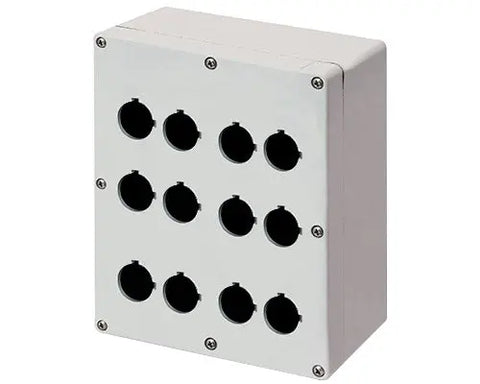

Elfin Push-button enclosure, 12 hole Ø 22, 170x205x100mm
Elfin Push-button enclosure, 12 hole Ø 22, 170x205x100mm

Elfin Push-button enclosure, 12 hole Ø 22, 170x205x100mm

This aluminum push-button enclosure, measuring 170x205x100 mm, includes 12 M22 holes and is designed for harsh environments, offering IP66/IP69 protection and impact resistance (IK09).
Vendor: Elfin
SKU: 040C1720-1EP12
Availability: In stock
Product type: Control Panel
Please hurry! Only 7 left in stock
Ask an expert
Description
Description
x
This aluminum push-button enclosure, measuring 170x205x100 mm, includes 12 M22 holes and is designed for harsh environments, offering IP66/IP69 protection and impact resistance (IK09).
Specifications
Specifications
x
IP RatingIP66 - IP69 - TYPE 4, 4X (IEC-EN60529 - NEMA 250)
Tariff No85381000
Country of OriginItaly
Compliance/CertificationsCE / CSA C22.2 No.14-13 / EAC / IEC-EN62208 / UL / UL508
Temperature: Operating-40° to 100°C
Packaging size / unit pc(s)
Material: Product HousingAluminum / Cu2 / Si12
Material: GasketCork rubber
Material: ScrewAISI 316 / Stainless steel
Warranty18 Months
ColourRAL7035
Documents
Documents
x
Download Datasheet
