Description

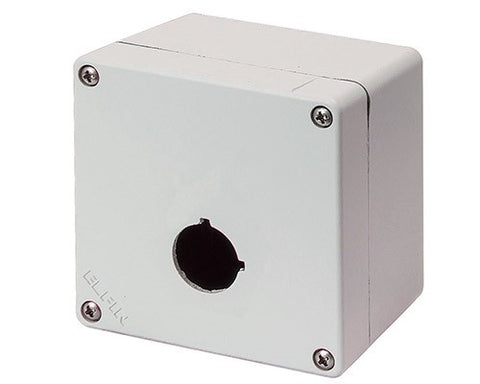

xThis compact aluminium push-button enclosure features one Ø 22 mm hole and is ideal for use in control systems. It offers IP66/IP69 protection against dust and water, and its rugged construction ensures reliable operation in challenging industrial environments. The unit is compatible with push-button controls and comes with pre-drilled cable entry points for easy installation.
Specifications
x| IP Rating | IP66 - IP69 |
| Tariff No | 85381000 |
| Country of Origin | China |
| Compliance/Certifications | CE / CSA / EAC / IEC-EN62208 / UL / UL508 / CSA C22.2 No.14-13 |
| Temperature: Operating | -40° to +100°C |
| Part Depth (mm) | 70mm |
| Part Width (mm) | 92mm |
| Part Height (mm) | 92mm |
| Diameter (mm) | 22mm |
| Weight (g) | 35g |
| Tightening Torque | 2.5 Nm |
| Material: Product | Aluminum |
| Material: Gasket | Cork rubber |
| Material: Screw | Stainless steel |
| Screw Type | M4 - cross head Phillips 2 |
| Warranty | 18 Months |
| Colour | Grey |
