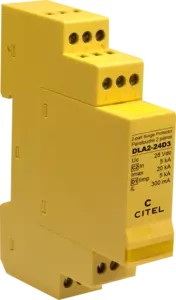

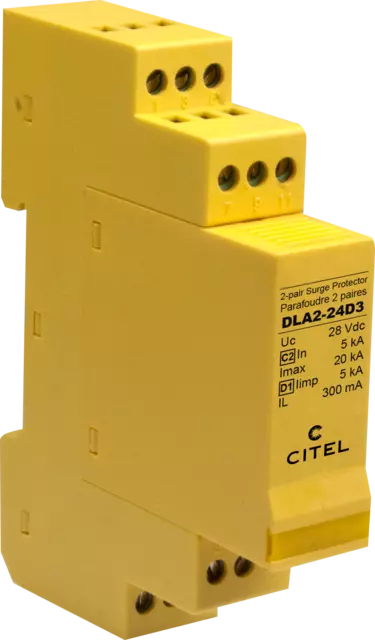

Citel DLA2-24D3 SPD, data, 2-pair, Din rail, plug-in, 24V, 5kA
Product Image
Citel DLA2-24D3 SPD, data, 2-pair, Din rail, plug-in, 24V, 5kA
Product Image

Citel DLA2-24D3 SPD, data, 2-pair, Din rail, plug-in, 24V, 5kA

This DIN-rail mounted surge protector is designed for 24V networks and provides protection for data lines. It features a clamping diode and gas discharge tube technology, with a maximum discharge current of 20kA. The protector is suitable for use in industrial automation and communication systems.
Vendor: Citel
SKU: 640311
Availability: Out Of Stock
Product type: Control Panel
Please hurry! Only 0 left in stock
Description
Description
x
This DIN-rail mounted surge protector is designed for 24V networks and provides protection for data lines. It features a clamping diode and gas discharge tube technology, with a maximum discharge current of 20kA. The protector is suitable for use in industrial automation and communication systems.
Specifications
Specifications
x
IP RatingIP20
Country of OriginFrance
Compliance/CertificationsEN 61643-21 / IEC 61643-21 / UL497B
Temperature: Operating-40°C to 85°C
Part Depth (mm)68mm
Part Width (mm)18mm
Part Height (mm)90mm
Weight (g)89g
Material: Product HousingThermoplastic
Connection TypeScrew terminal: cross section 0.5-2.5mm²
Max Frequency> 3 MHz
Operating Voltage25 VDC
Mounting TypeSymmetrical rail 35 mm (EN 60715)
Documents
Documents
x
Download Datasheet
