Description

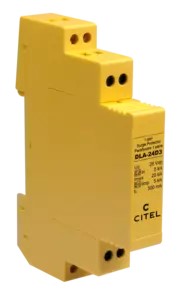

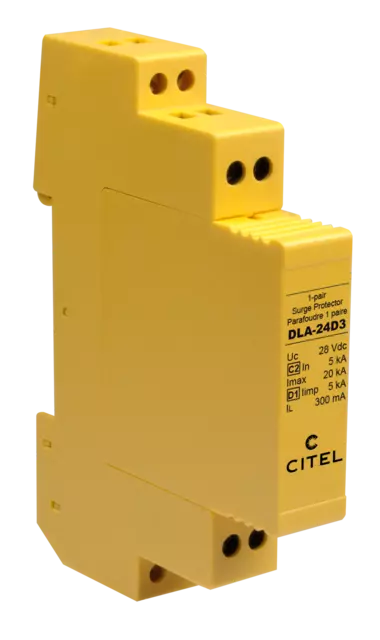

xThe surge protector is optimized for 4-20 mA data lines, providing 20 kA maximum discharge current. With a compact DIN rail mount and plug-out with line cut-off, it is ideal for high-density installations, ensuring robust protection for sensitive data transmission equipment.
Specifications
x| IP Rating | IP20 |
| Country of Origin | France |
| Compliance/Certifications | EN 61643-21 / IEC 61643-21 / UL497B / UL Listed |
| Temperature: Operating | -40°C to 85°C |
| Packaging size / unit | pc(s) |
| Material: Product Housing | Thermoplastic |
| Connection Type | By screw terminal: cross section 0.5-2.5mm² |
| Operating Voltage | 28 VDC |
| Mounting Type | Symmetrical rail 35 mm (EN 60715) |
