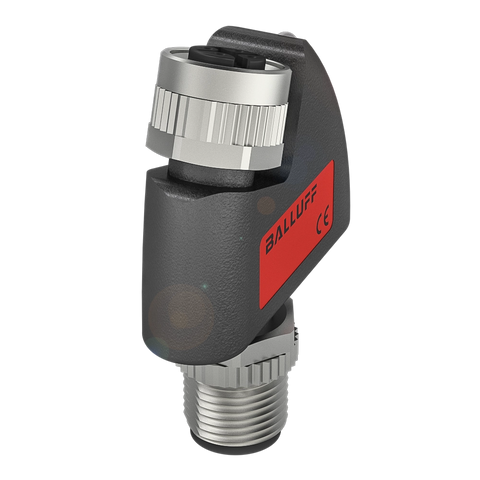

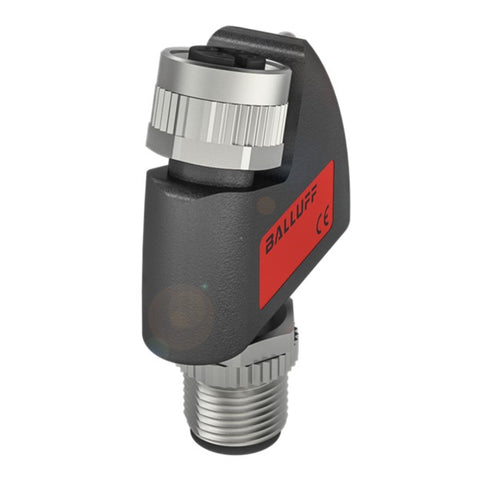

Balluff BNI IOL-722-000-K023 Signal converter, IO-link 1.0
Balluff BNI IOL-722-000-K023 Signal converter, IO-link 1.0

Balluff BNI IOL-722-000-K023 Signal converter, IO-link 1.0

Version Analog converter Interface IO-Link 1.0 Operating voltage Ub 18...30.2 VDC Analog outputs Analog, current (4…20 mA) Configurable inputs/outputs no
Vendor: Balluff
SKU: BNI004C
Availability: In stock
Product type: Field Sensing & Connectivity
Please hurry! Only 1 left in stock
Ask an expert
Description
Description
x
Version
Analog converter
Interface
IO-Link 1.0
Operating voltage Ub
18...30.2 VDC
Analog outputs
Analog, current (4…20 mA)
Configurable inputs/outputs
no
Specifications
Specifications
x
IP RatingIP67, when threaded in
Compliance/CertificationsCE WEEE
Material: Housing / GripPA
Material: GasketFKM 75
Part Depth (mm)50.4mm
Part Width (mm)14.2mm
Part Height (mm)40mm
Connection TypeM12x1 / Male / 4-pin / A-coded - M12x1-/ Female / 4-pin / A-coded
Data Transmission RateCOM2 (38.4 kBaud)
IO-Link TypeIO-Link 1.0
Operating Voltage 18 - 30.2 VDC
Rated Voltage24 V
Current consumption30 mA
Documents
Documents
x
Download Datasheet
