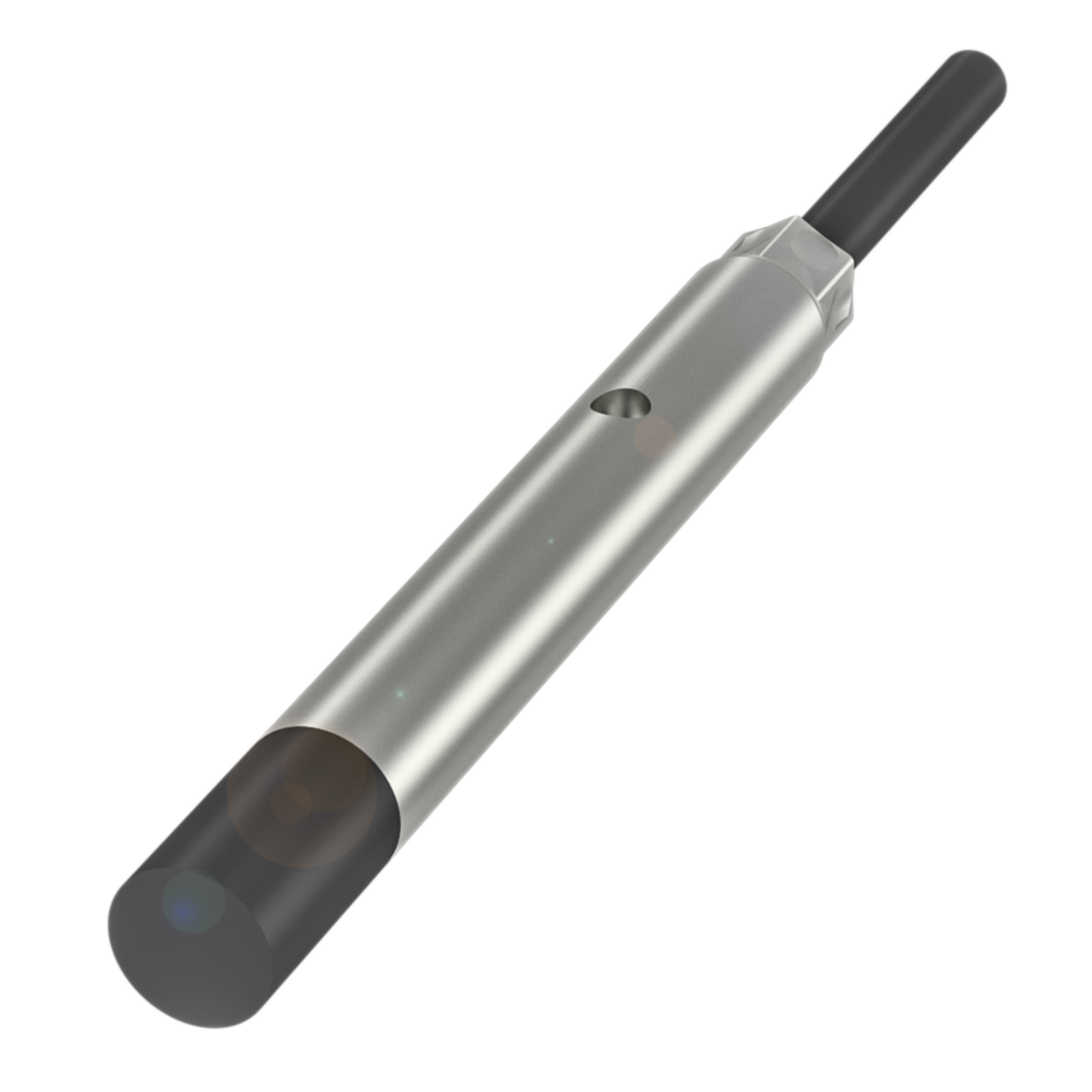

Balluff BES G04ED-PSC50F-EP05 Inductive sensor, PNP, NO Part number BES012J

This inductive sensor detects metallic targets at a rated operating distance of 5mm, switching a PNP normally open output. It operates from 10 to 30 VDC, offering a switching frequency of 3000 Hz and a rated operating current of 100 mA, with a stainless steel housing and IP67 protection suited to washdown or contaminated environments. The non-flush mounting style and 4mm part diameter make it suitable for compact sensing positions on machinery or panel-mounted equipment, connected via a 5 m PUR cable.

Key specifications

• IP rating: IP67
• Operating voltage: 10 - 30 VDC
• Rated voltage: 24V
• Output: PNP normally open (NO)
• Mounting: Non-flush mounting
