Product Information

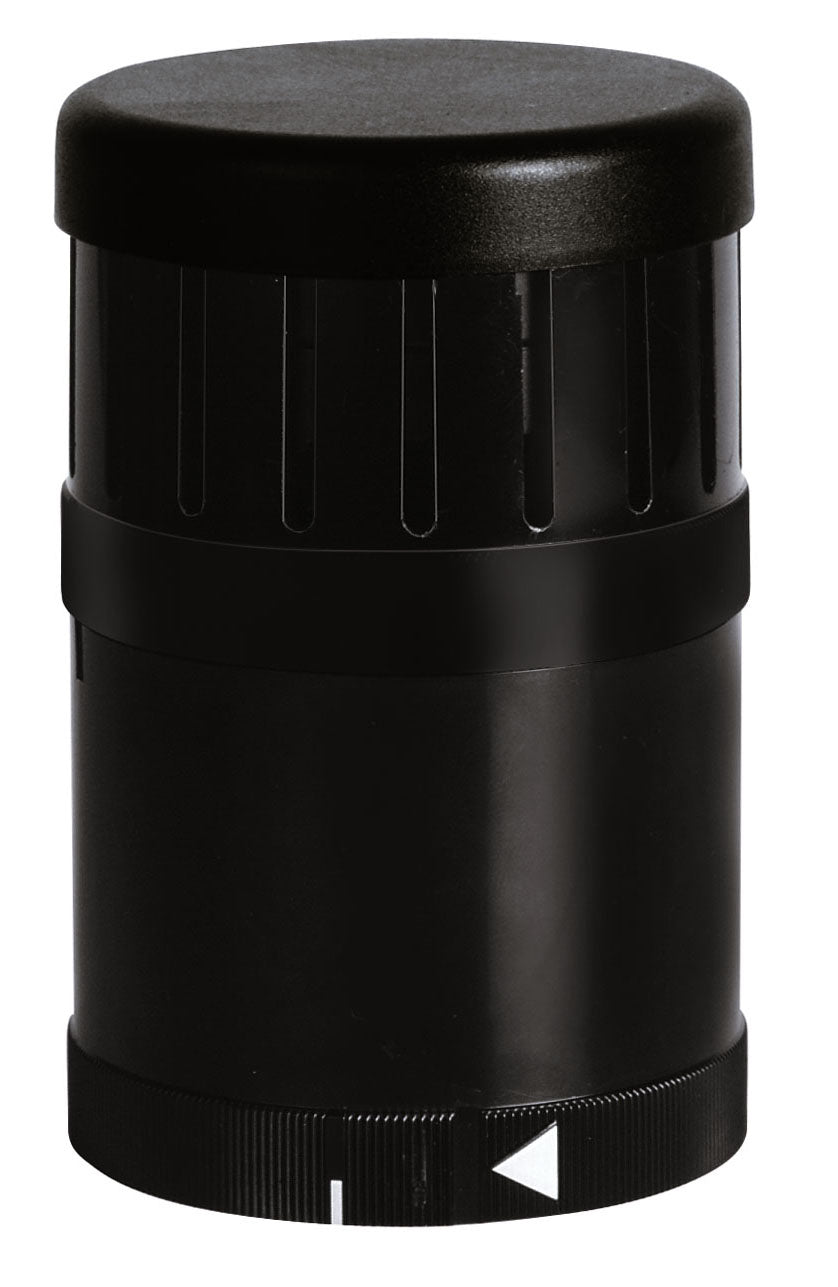

Vocal element 24VDC BK

Article Number: 645.840.55

Product Info

Speech output element from the KombiSIGN series

• Playback of customer-specific audio files (tones, melodies)
• Unique instructions in the respective national language possible
• Excellent sound and audio quality
• Easy data transfer and convenient operation
• Creation of individual playlists and playback modes possible

Technical Data

Mechanical Data

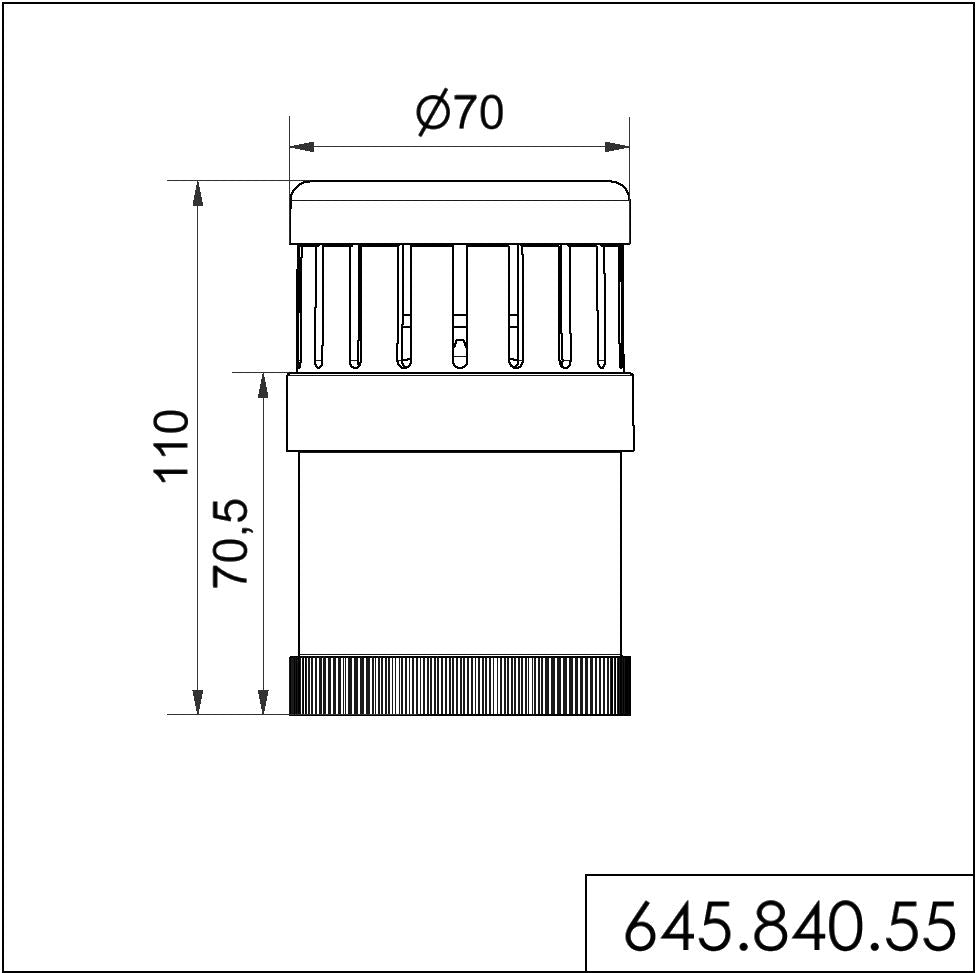

• Height: 110.00 mm
• Diameter: 70.00 mm
• Materials: PC
• Housing Colour: Black
• Protection Category: IP65
• Working Temperature Minimum: -20°C
• Working Temperature Maximum: +50°C
• Weight with Packaging: 290.00 g
• Product Weight: 184.00 g

Electrical Data

• Operating Voltage: 24V
• Operating Voltage Type: DC
• Operating Voltage Tolerance: +/- 10%
• Rated Operational Voltage: 24 VDC
• Rated Operational Current: 400.00 mA
• Rated Inrush Current: < 1A
• Protection Class: Protection class 2
• Pollution Degree: 2

Authorisation Data

• Conforms with CE: Yes
• Conforms with RoHS Directive: Yes
• WEEE: Yes
• Conforms with ATEX Directive: No
• Conforms with CCC: No
• Conforms with UL: cULus
• UL Type Rating: Type 12
• Conforms with FCC: No
• Conforms with IC: No
• EAC Certificate Available: Yes
• Conforms with UKCA (Importer): Yes
• Conforms with AS-I: No
• Conforms with CMIM: No
• ICAO Certification: No
• Conforms with DNV: No
• Conforms with RoHS CN: No
• Conforms with VdS: No
• Conforms with TÜV: No

Audible Data

• Volume (max) at 1m distance: 88.0 dB (A)
• Volume Adjustable: Potentiometer
• Acoustic Service Life: 5,000 h minimum
• Volume Adjustment Range: 10-100%
