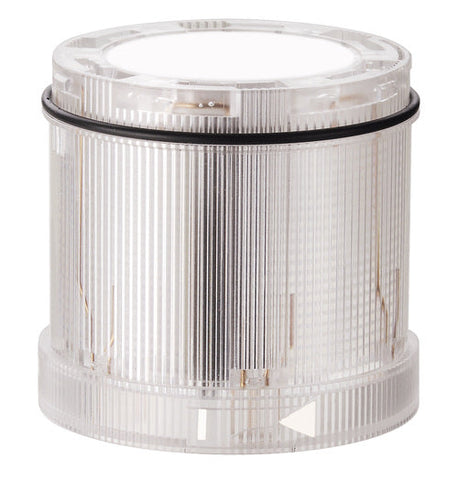

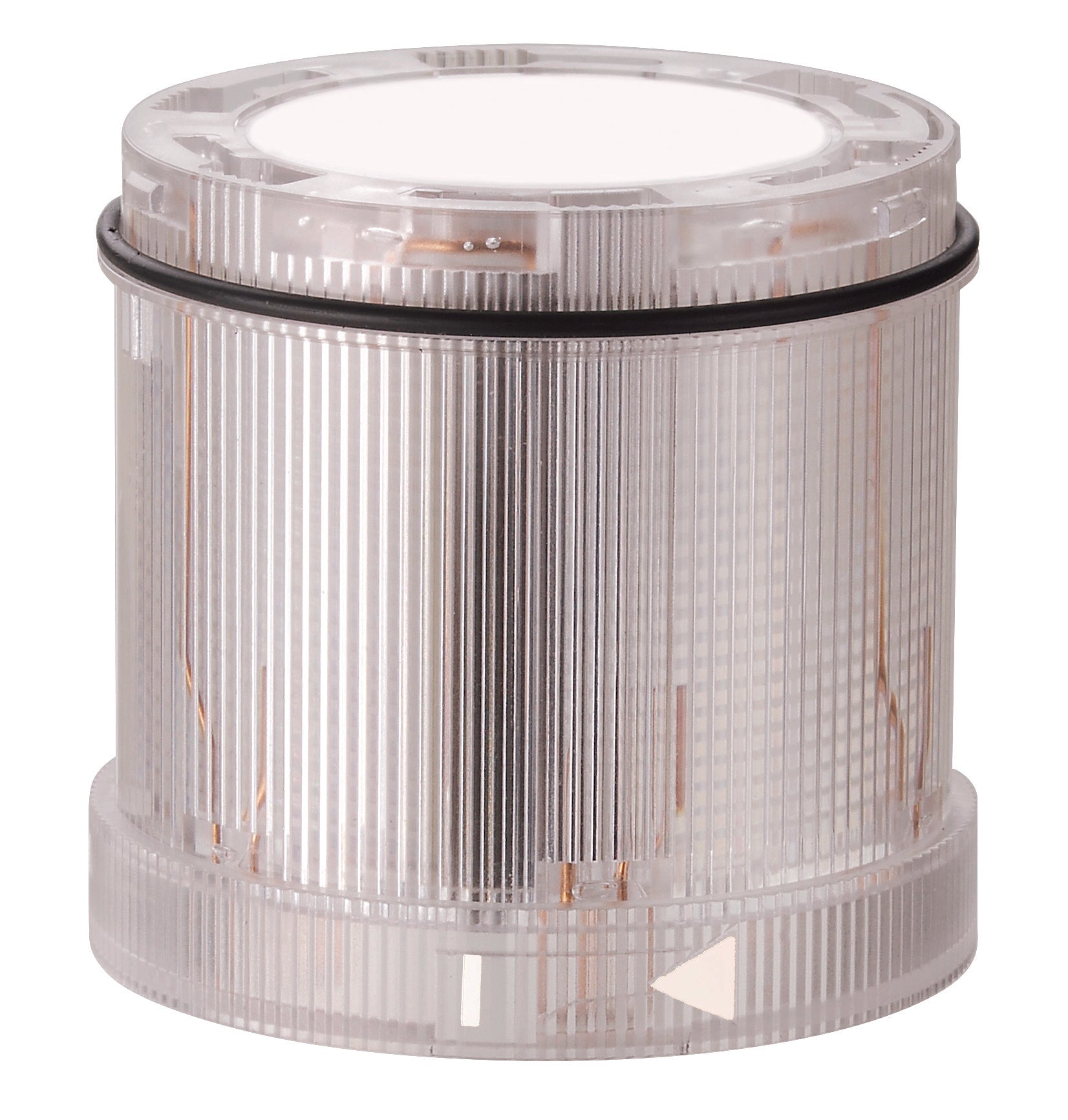

Werma Twinlight design, blue light, 24VAC/DC, 70 x 66mm

Product Information

Article Number: 647.530.75

Product Description

LED TwinLIGHT element suitable for KombiSIGN 72 series

• The TwinLIGHT light element combines two light image functions
• Blue light is produced by coloured LEDs.
• Suitable for the modular signal tower KombiSIGN 72 in DesignLOOK.

Technical Data

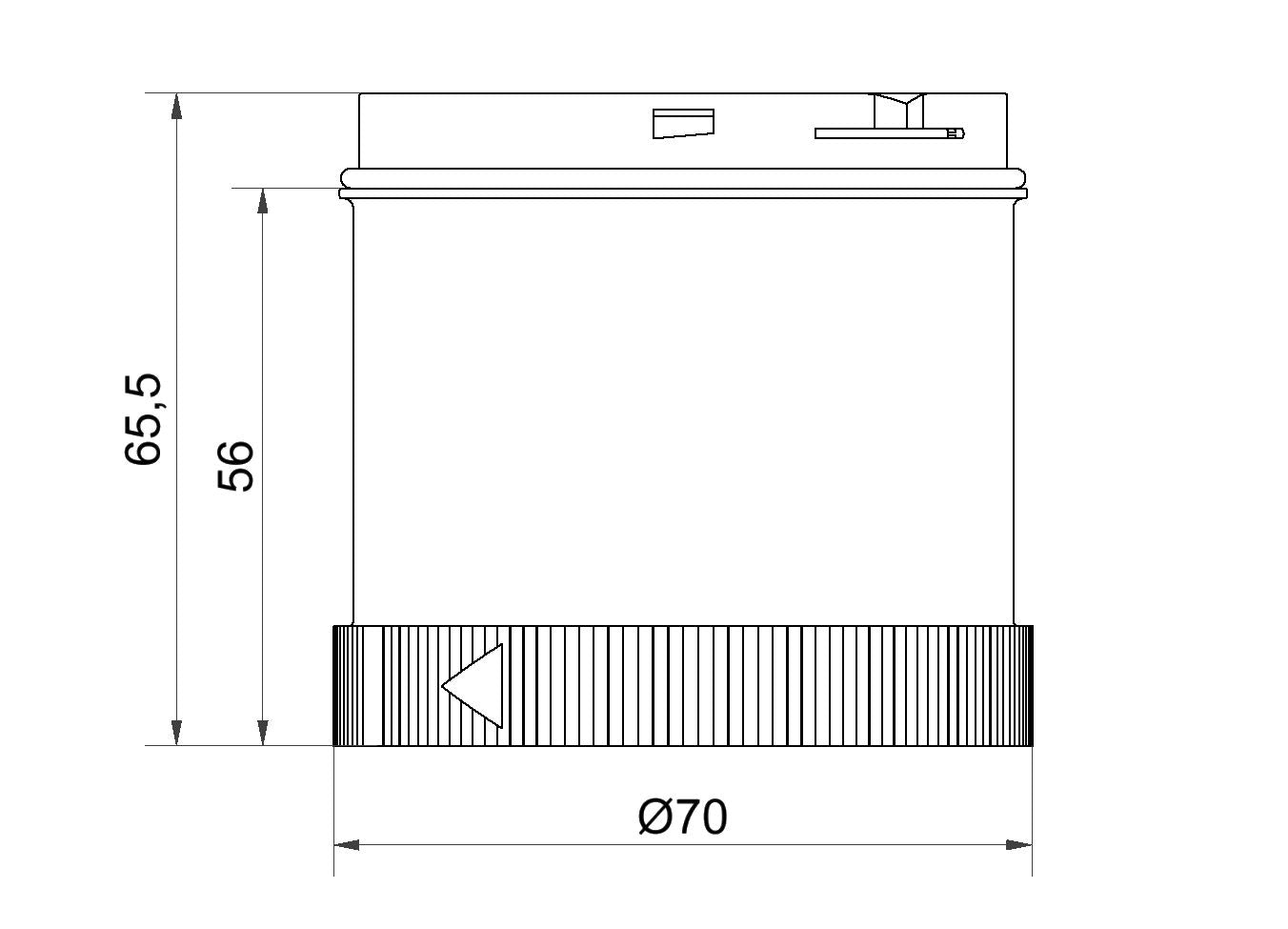

Mechanical Data

• Height: 66.00 mm
• Diameter: 70.00 mm
• Materials: PC
• Dome Colour: Clear
• Protection Category: IP65
• Working Temperature Minimum: -30°C
• Working Temperature Maximum: +60°C
• Weight with Packaging: 90.00 g
• Product Weight: 78.00 g

Electrical Data

• Operating Voltage: 24V
• Operating Voltage Type: AC/DC
• Operating Voltage Frequency: 50Hz
• Operating Voltage Tolerance: +/- 10%
• Rated Operational Voltage: 24 VDC
• Rated Operational Current: 80.00 mA
• Rated Inrush Current: 500 mA
• Protection Class: Protection class 2
• Pollution Degree: 3

Optical Data

• Light Source: LED
• Optical Signal Image: Blink; Permanent; TwinLight
• Blink Frequency: 1 Hz
• Service Life Optical: 50,000 h maximum

Authorisation Data

• Conforms with CE: Yes
• Conforms with RoHS Directive: Yes
• WEEE: Yes
• Conforms with ATEX Directive: No
• Conforms with CCC: No
• Conforms with UL: cULus
• UL Type Rating: Type 12
• Conforms with FCC: No
• Conforms with IC: No
• EAC Certificate Available: Yes
• Conforms with UKCA (Importer): Yes
• Conforms with AS-I: No
• Conforms with CMIM: No
• ICAO Certification: No
• Conforms with DNV: No
• Conforms with RoHS CN: No
• Conforms with VdS: No
• MTTF-value [years]: No
• Conforms with TÜV: No
