Product Information

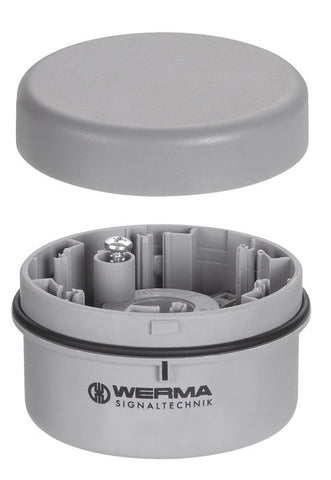

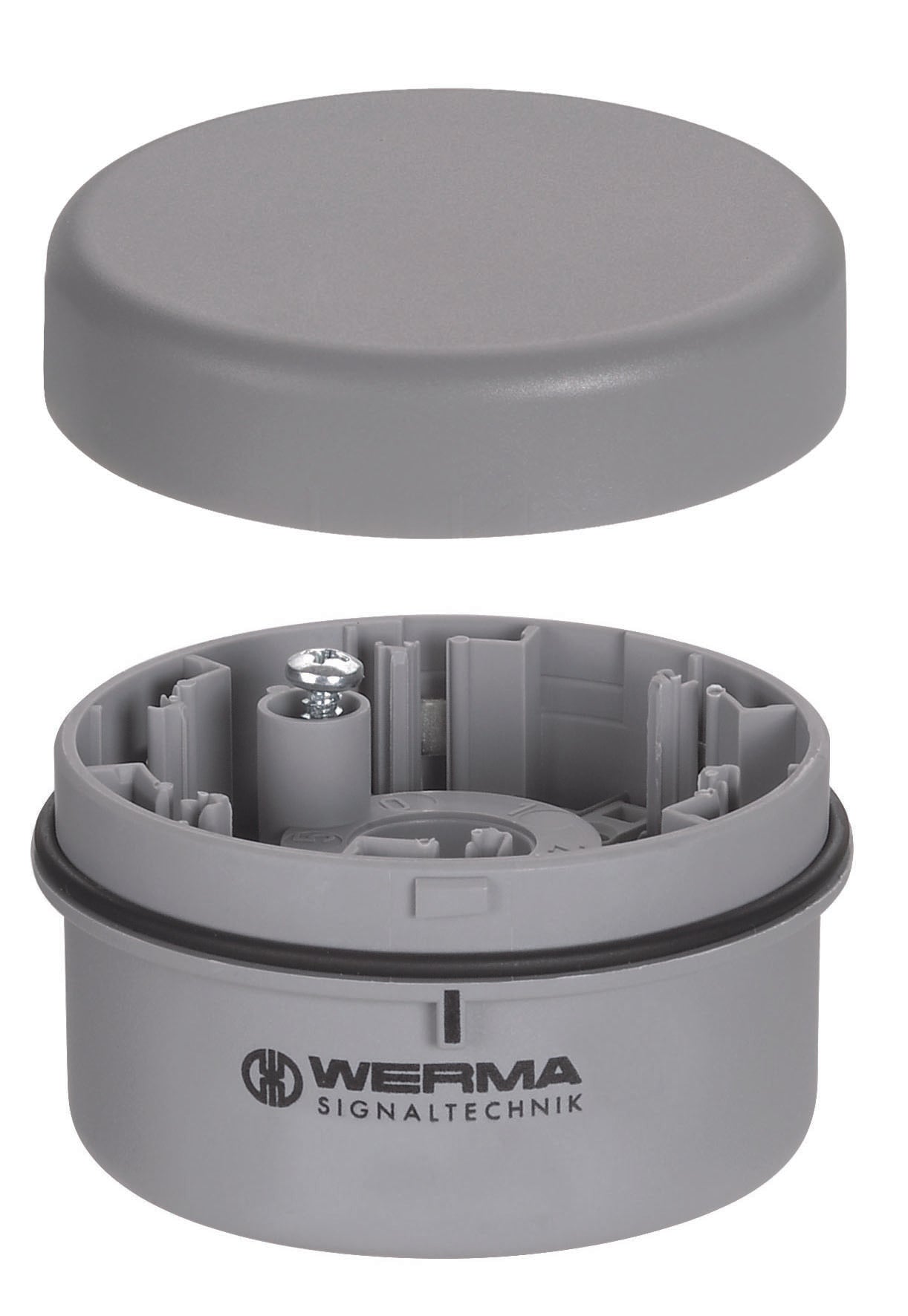

Terminal element BWM 12-230VAC/DC GY

Article Number

640.900.00

Type of Fixing

Base mounting; Wall mounting

Product Info

Suitable for the KombiSIGN 72 modular signal tower in DesignLOOK.

• Connection element for floor mounting.
• Wall mounting possible with bracket (accessory).
• Please order accessories for wall mounting separately.

Technical Data

Mechanical Data

• Height: 36.00 mm
• Diameter: 70.00 mm
• Materials: PA-GF; PC
• Housing Colour: Grey
• Protection Category: IP65
• Connection: Spring-type terminal
• Cross-sectional Area Minimum: 0.25 mm² / 24 AWG
• Cross-sectional Area Maximum: 1.50 mm² / 16 AWG
• Type of Fixing: Base mounting; Wall mounting
• Cable Entry Maximum: d = 11 mm
• Working Temperature Minimum: -20°C
• Working Temperature Maximum: +50°C
• Weight with Packaging: 102.000 g
• Product Weight: 90.000 g

Electrical Data

• Operating Voltage: 12-230V
• Operating Voltage Type: AC/DC
• Protection Class: Protection class 2
• Pollution Degree: 3
• Overvoltage Category: II
• Isolation Voltage: Ui = 250V; Uimp = 2.500V

Authorisation Data

• Conforms with CE: Yes
• Conforms with RoHS Directive: Yes
• WEEE: Yes
• Conforms with ATEX Directive: No
• Conforms with CCC: No
• Conforms with UL: cULus
• UL Type Rating: Type 12
• Conforms with FCC: No
• Conforms with IC: No
• EAC Certificate Available: Yes
• Conforms with UKCA (Importer): Yes
• Conforms with AS-I: No
• Conforms with CMIM: No
• ICAO Certification: No
• Conforms with DNV: No
• Conforms with RoHS CN: No
• Conforms with VdS: No
• Conforms with TÜV: No

Downloads and Tone Type

• Datasheet (0.24 MB)
• Bedienungsanleitung (1.16 MB)

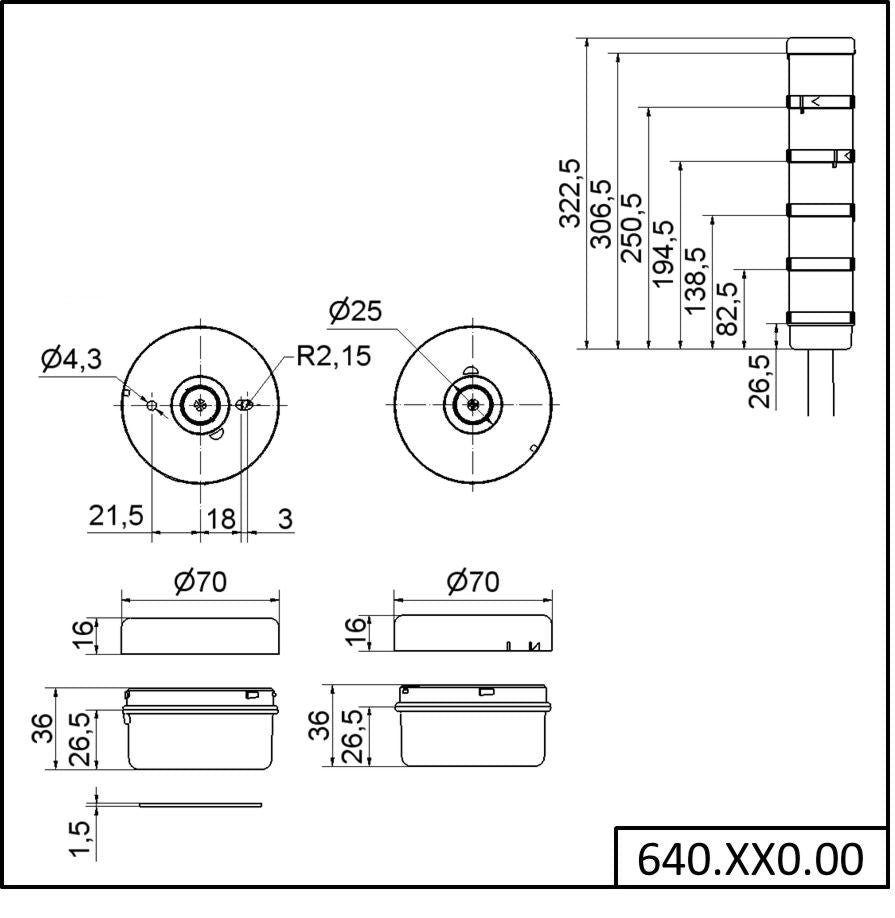

• Masszeichnung (0.09 MB)
• CAD Modell STP (0.04 MB)
• CAD Modell STP (0.09 MB)
