Description
xSpecifications
x| IP Rating | IP66 |
| Compliance/Certifications | CE / EAC / RoHS directive |
| Temperature: Operating / Dynamic | -25°C to 70 °C |
| Material: Housing / Grip | ABS / PC |

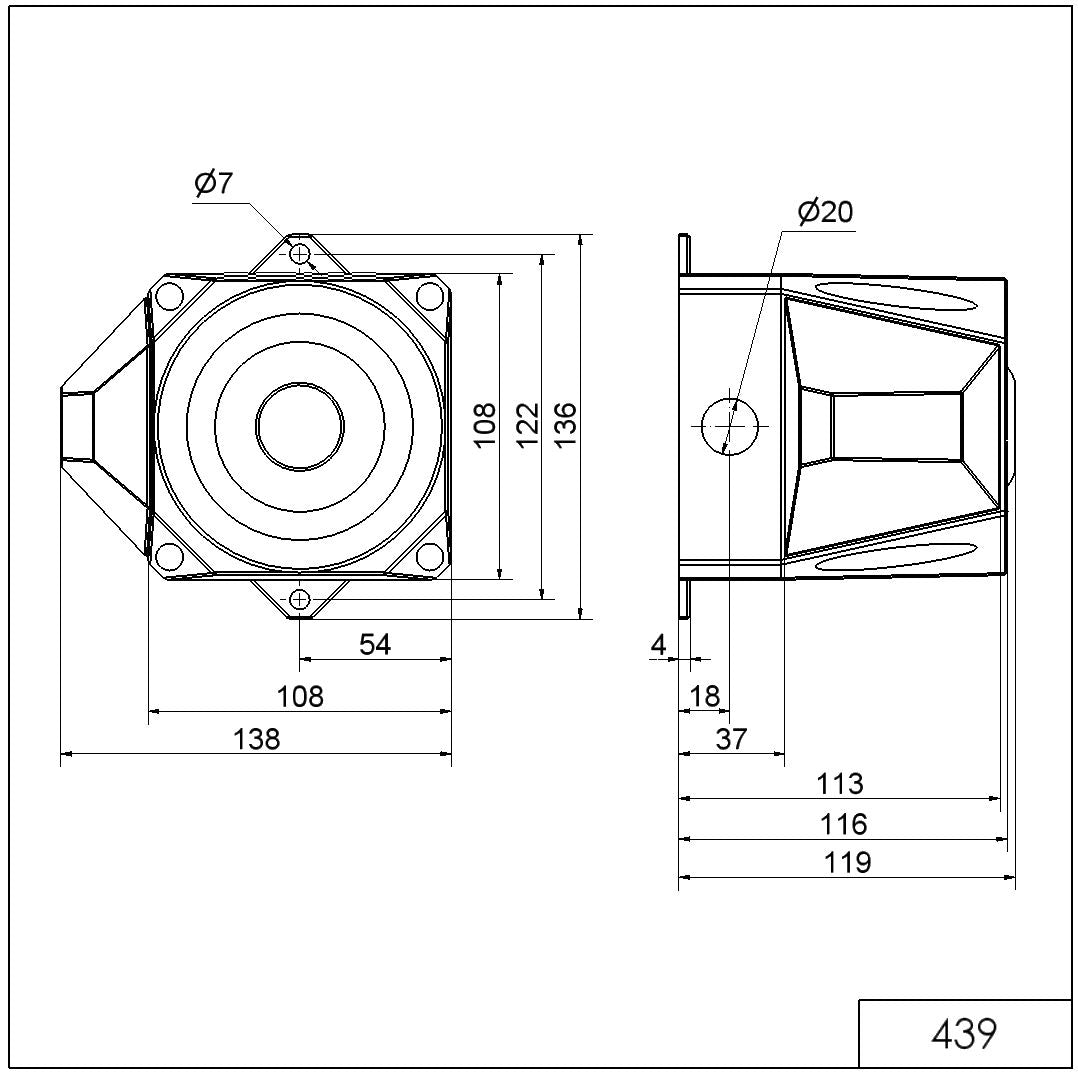

| Part Width (mm) | 136mm |
| Part Length (mm) | 138mm |
| Part Height (mm) | 119mm |
| Weight (g) | 430g |
| Conductor Cross-section | cross-sectional area minimum 0,25mm² / 24AWG - cross-sectional area maximum 2,50mm² / 14AWG |
| Connection Type | Screw terminals |
| Operating Voltage | 9 - 60 V |
| Rated Voltage | 24 VDC |
| Rated Operating Current | 230 mA |
| Colour | Red |
