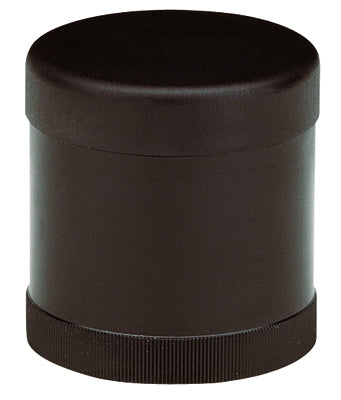

Siren element 8 tne 24VAC/DC BK

Product Information

Article Number: 844.126.55

Technical Data

Mechanical Data

• Height: 72.00 mm
• Diameter: 70.00 mm
• Materials: PC
• Housing Colour: Black
• Protection Category: IP54
• Working Temperature Minimum: -20°C
• Working Temperature Maximum: +50°C
• Weight with Packaging: 113.00 g
• Product Weight: 93.00 g

Electrical Data

• Operating Voltage: 24V
• Operating Voltage Type: AC/DC
• Operating Voltage Frequency: 50Hz
• Operating Voltage Tolerance: +/- 10%
• Rated Operational Voltage: 24 VDC
• Rated Operational Current: 80.00 mA
• Rated Inrush Current: 200 mA
• Protection Class: Protection class 2
• Pollution Degree: 2

Authorisation Data

• Conforms with CE: Yes
• Conforms with RoHS Directive: Yes
• WEEE: Yes
• Conforms with ATEX Directive: No
• Conforms with CCC: No
• Conforms with UL: cULus
• UL Type Rating: Type 12
• Conforms with FCC: No
• Conforms with IC: No
• EAC Certificate Available: Yes
• Conforms with UKCA (Importer): Yes
• Conforms with AS-I: No
• Conforms with CMIM: No
• ICAO Certification: No
• Conforms with DNV: No
• Conforms with RoHS CN: No
• Conforms with VdS: No
• Conforms with TÜV: No

Audible Data

• Volume (max) at 1m distance: 100.0 dB (A)
• Acoustic Signal Image: Multi-tone
• Number of Tones: 8 tones
• Acoustic Service Life: 5,000 h minimum

Downloads and Tone Type

• Datasheet (0.30 MB)

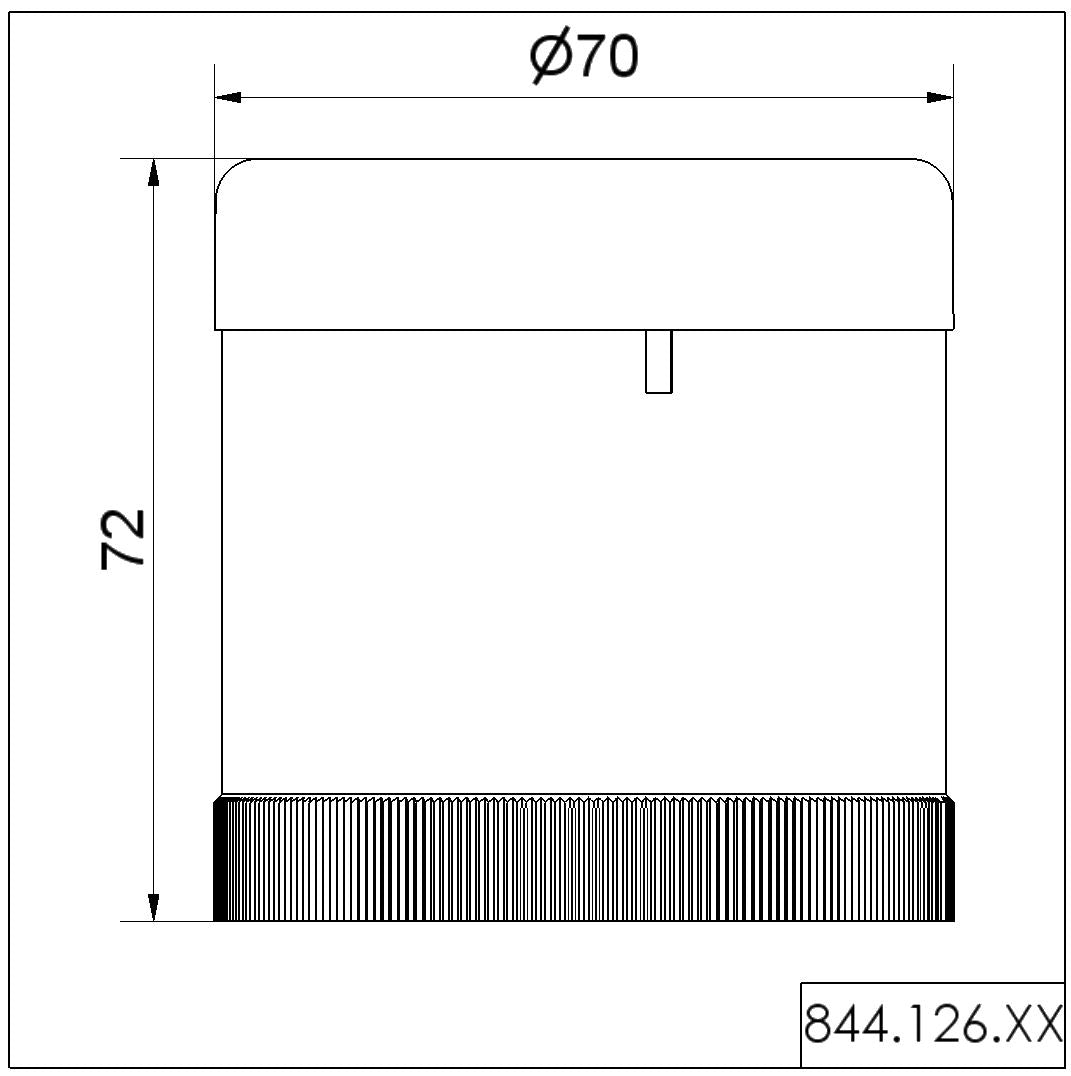

• Dimensional Drawing (0.08 MB)
• CAD Model STP (2.73 MB)
