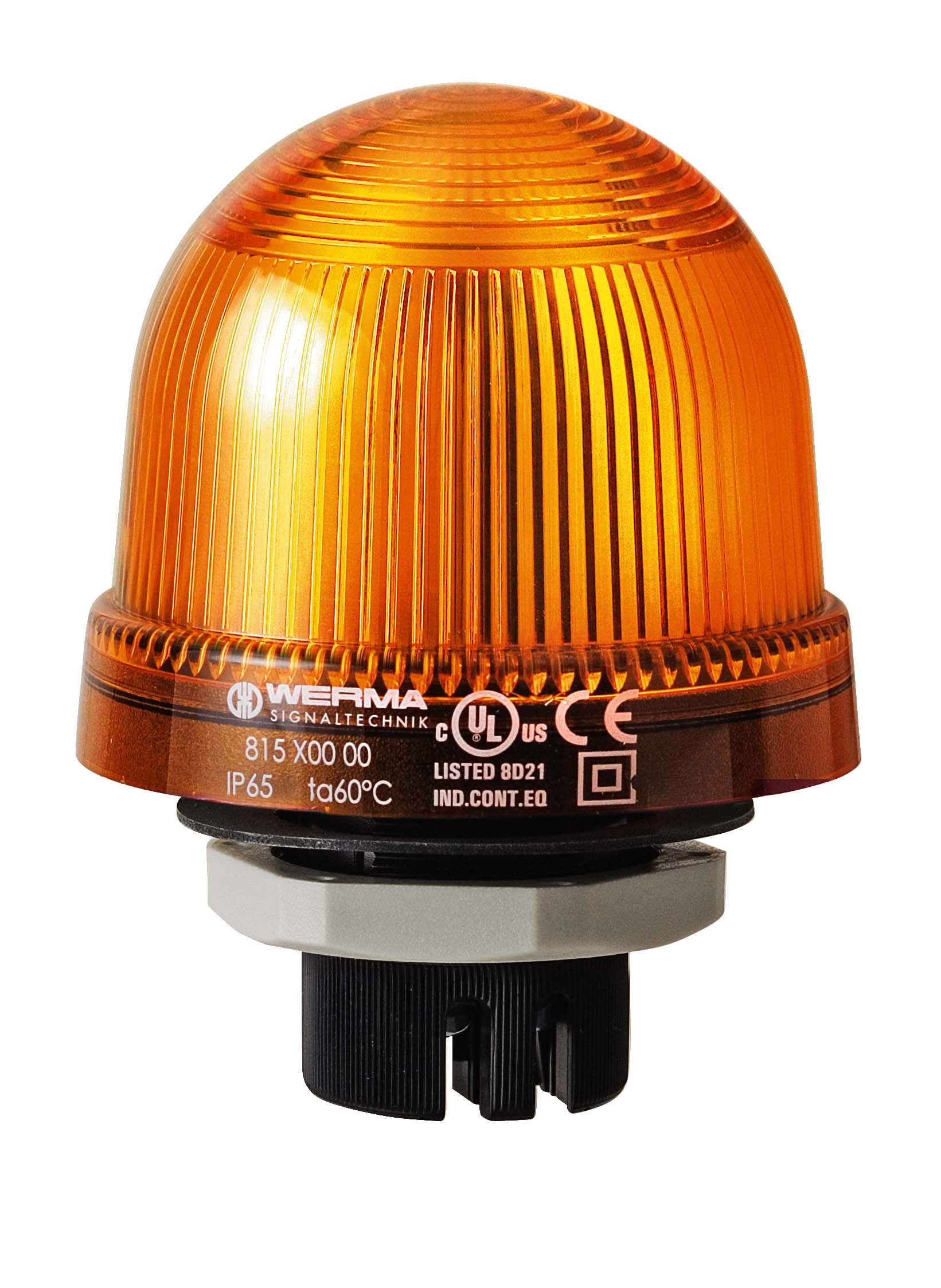

Permanent Beacon EM 12-230VAC/DC YE

Product Information

Article Number: 815.300.00

Type of Fixing: Built-in mounting

Voltage: 12-230V AC/DC

Technical Data

Mechanical Data

• Height: 97 mm
• Diameter: 75 mm
• Materials: PA-GF; PC; PC/ABS
• Dome Colour: Yellow
• Protection Category: IP65
• Connection: Screw terminals
• Cable Entry: Through hole
• Cross-sectional Area Maximum: 1.50 mm² / 16 AWG
• Type of Fixing: Built-in mounting
• Cable Entry Maximum: d = 9 mm
• Working Temperature Minimum: -20°C
• Working Temperature Maximum: +60°C
• Tension Relief: Present (conforms to VDE)
• Weight with Packaging: 123 g
• Product Weight: 96 g

Electrical Data

• Operating Voltage: 12-230V
• Operating Voltage Type: AC/DC
• Protection Class: Protection class 2
• Pollution Degree: 3; In the connection area: 2
• Overvoltage Category: II
• Isolation Voltage: Ui = 250V; Uimp = 2.500V

Optical Data

• Service Life Optical: Depends on bulb

Authorisation Data

• Conforms with CE: Yes
• Conforms with RoHS Directive: Yes
• WEEE: Yes
• Conforms with ATEX Directive: No
• Conforms with CCC: Yes
• Conforms with UL: cULus
• UL Type Rating: Type 12
• Conforms with FCC: No
• Conforms with IC: No
• EAC Certificate Available: Yes
• Conforms with UKCA (Importer): Yes
• Conforms with AS-I: No
• ICAO Certification: No
• Conforms with DNV: No
• Conforms with RoHS CN: No
• Conforms with VdS: No
• Conforms with TÜV: No

Downloads and Tone Type

• Datasheet (0.26 MB)
• Operating Instructions (0.91 MB)

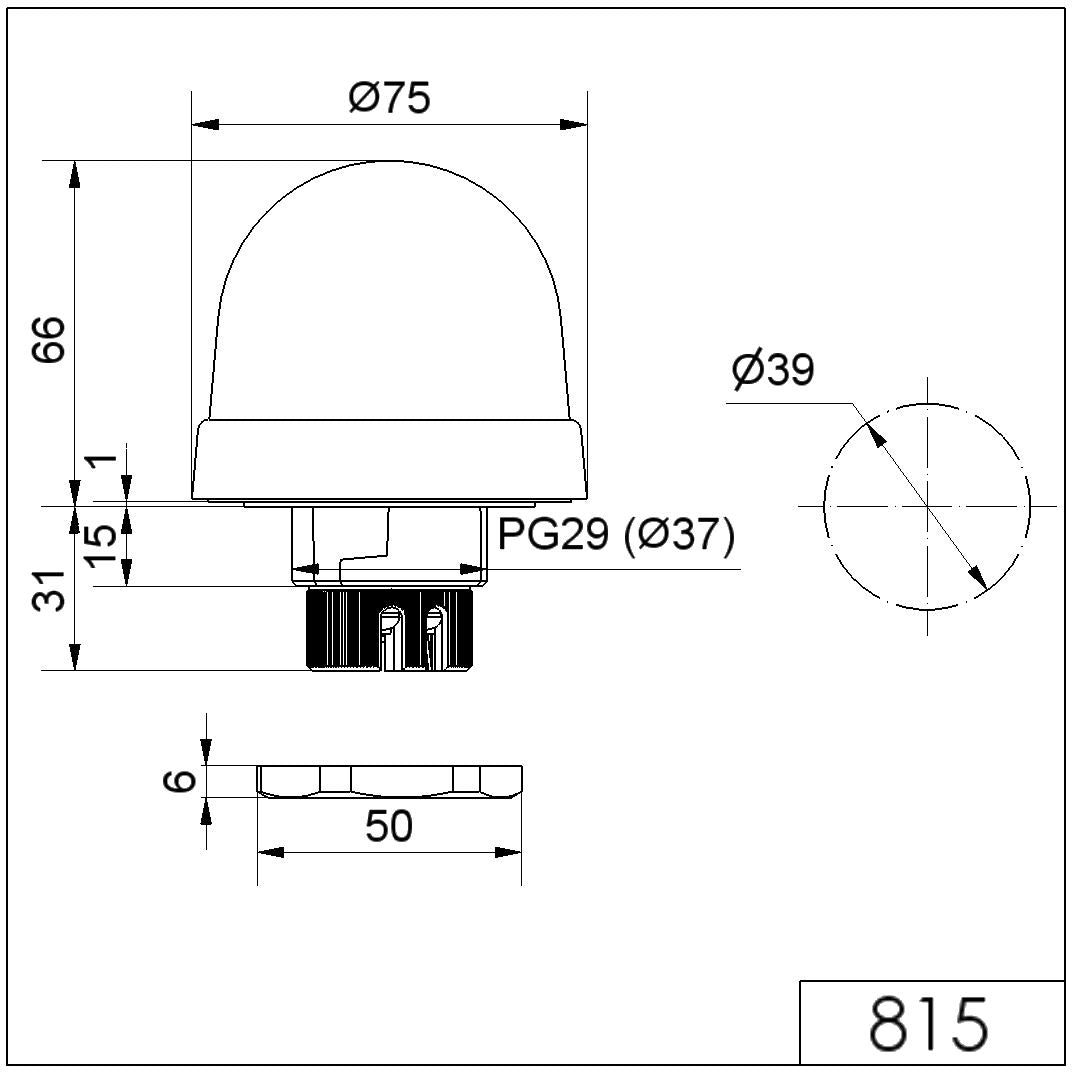

• Dimensional Drawing (0.08 MB)
