Product Information

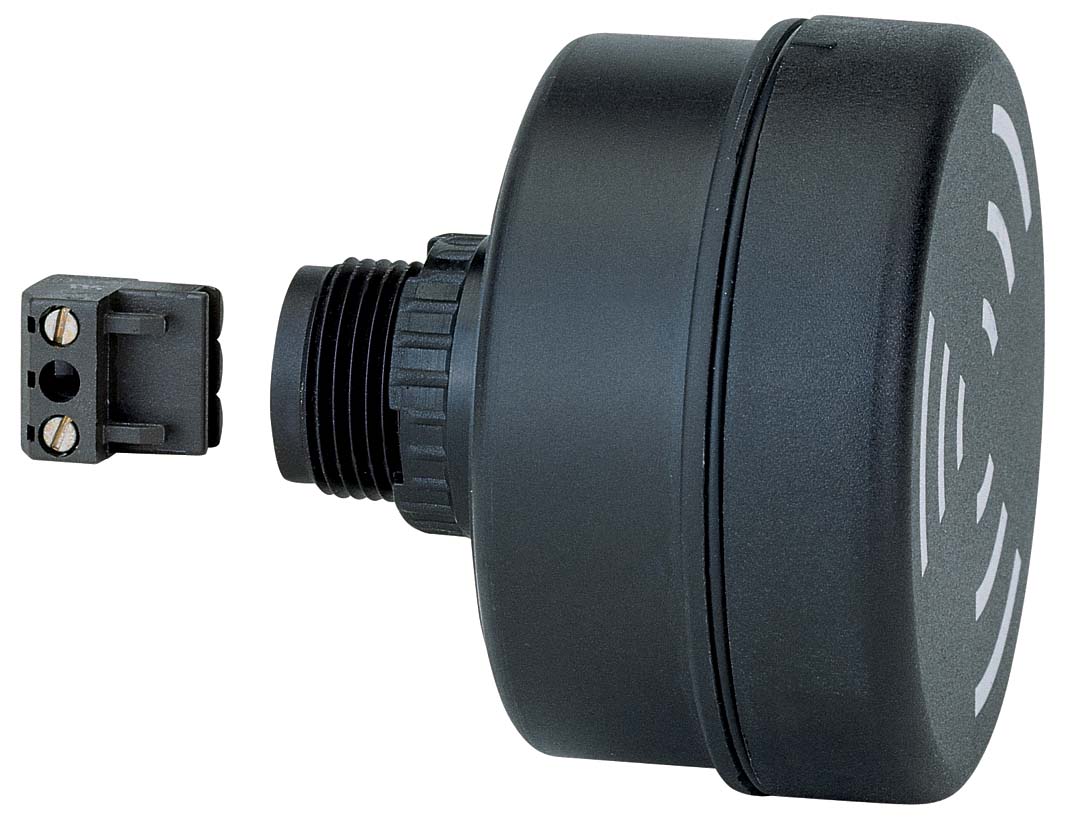

Multi-t.sounder EM 8 tne 230VAC BK

Article Number

110.000.68

Type of Fixing

Built-in mounting

Product Info

High output installation multi-tone sounder for the 22.5 mm control panel/switchgear programme

• 8 different tones selectable
• Application-specific sound output setting

Technical Data

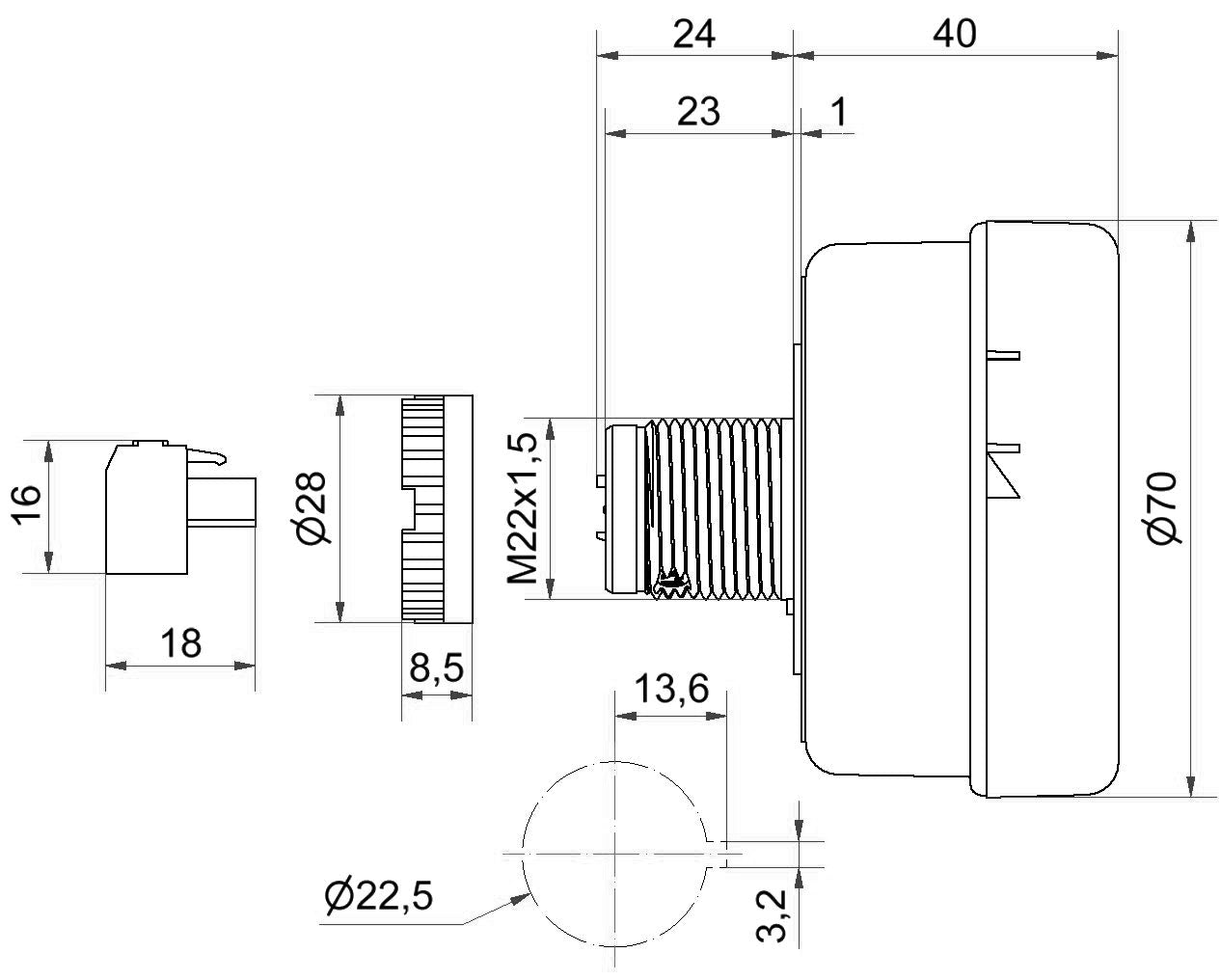

Mechanical Data

• Height: 59.00 mm
• Diameter: 72.00 mm
• Materials: PC; PC/ABS
• Housing Colour: Black
• Protection Category: IP65
• Connection: Screw terminals
• Cross-sectional Area Maximum: 1.50 mm² / 16 AWG
• Type of Fixing: Built-in mounting
• Working Temperature Minimum: -20°C
• Working Temperature Maximum: +50°C
• Weight with Packaging: 91.00 g
• Product Weight: 72.00 g

Electrical Data

• Operating Voltage: 230V
• Operating Voltage Type: AC
• Operating Voltage Frequency: 50Hz
• Operating Voltage Tolerance: +/- 10%
• Rated Operational Voltage: 230 VAC
• Rated Operational Current: 40.00 A
• Rated Inrush Current: < 1A
• Protection Class: Protection class 2
• Pollution Degree: 3; In the connection area: 2
• Overvoltage Category: II
• Isolation Voltage: Ui = 250V; Uimp = 2.500V

Authorisation Data

• Conforms with CE: Yes
• Conforms with RoHS Directive: Yes
• WEEE: Yes
• Conforms with ATEX Directive: No
• Conforms with CCC: No
• Conforms with UL: cULus
• UL Type Rating: Type 4X
• Conforms with FCC: No
• Conforms with IC: No
• EAC Certificate Available: Yes
• Conforms with UKCA (Importer): Yes
• Conforms with AS-I: No
• ICAO Certification: No
• Conforms with DNV: No
• Conforms with RoHS CN: No
• Conforms with VdS: No
• Conforms with TÜV: No
• MTTF-value [years]: No
