Flashing Light Element 230VAC CL

Product Information

Article Number: 643.400.68

Product Info

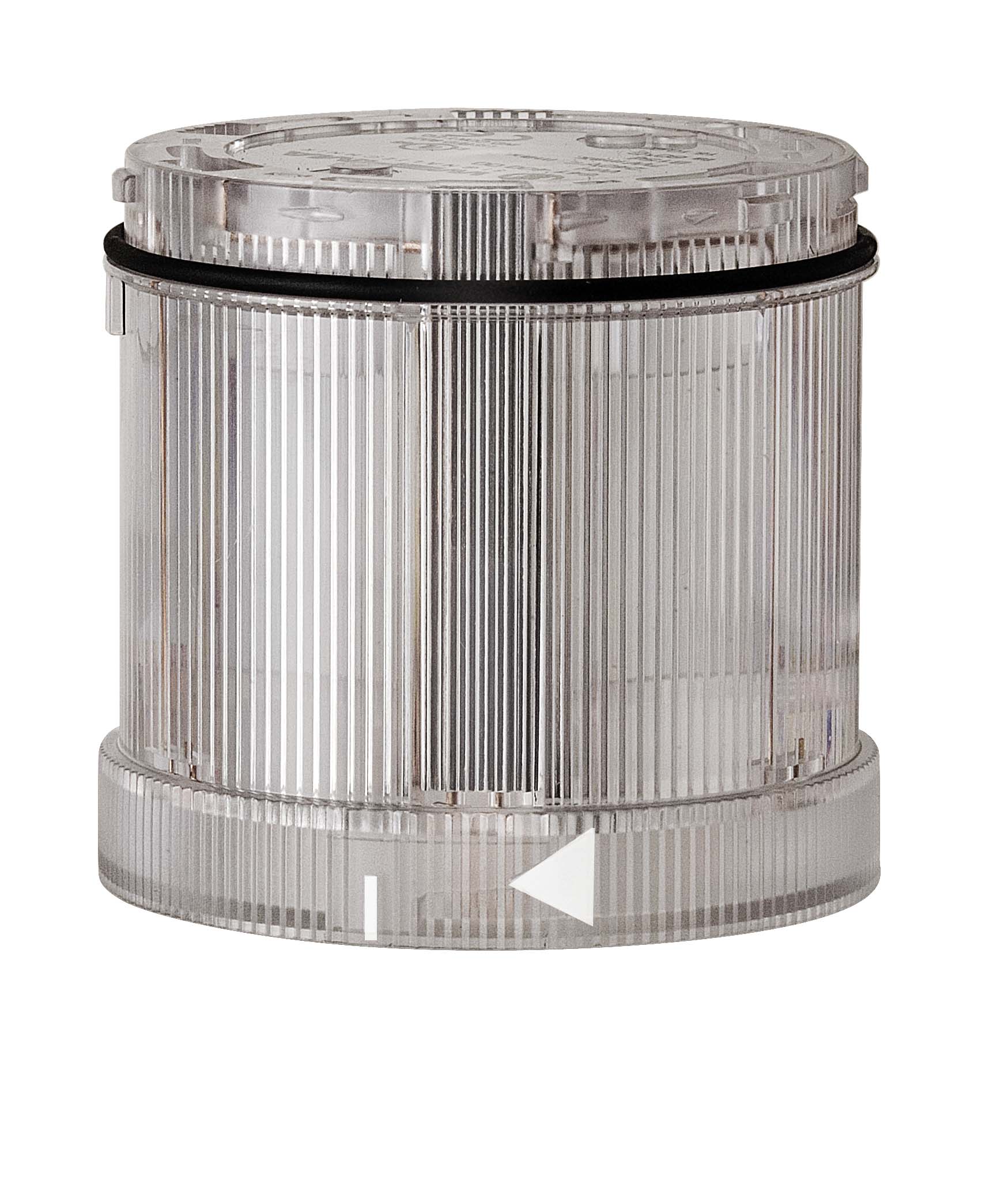

Xenon flash element from the KombiSIGN 71 series

• The strobe light impresses with the intense light pulse of the xenon
• Good perception due to focusing of the signal on the central area

Technical Data

Mechanical Data

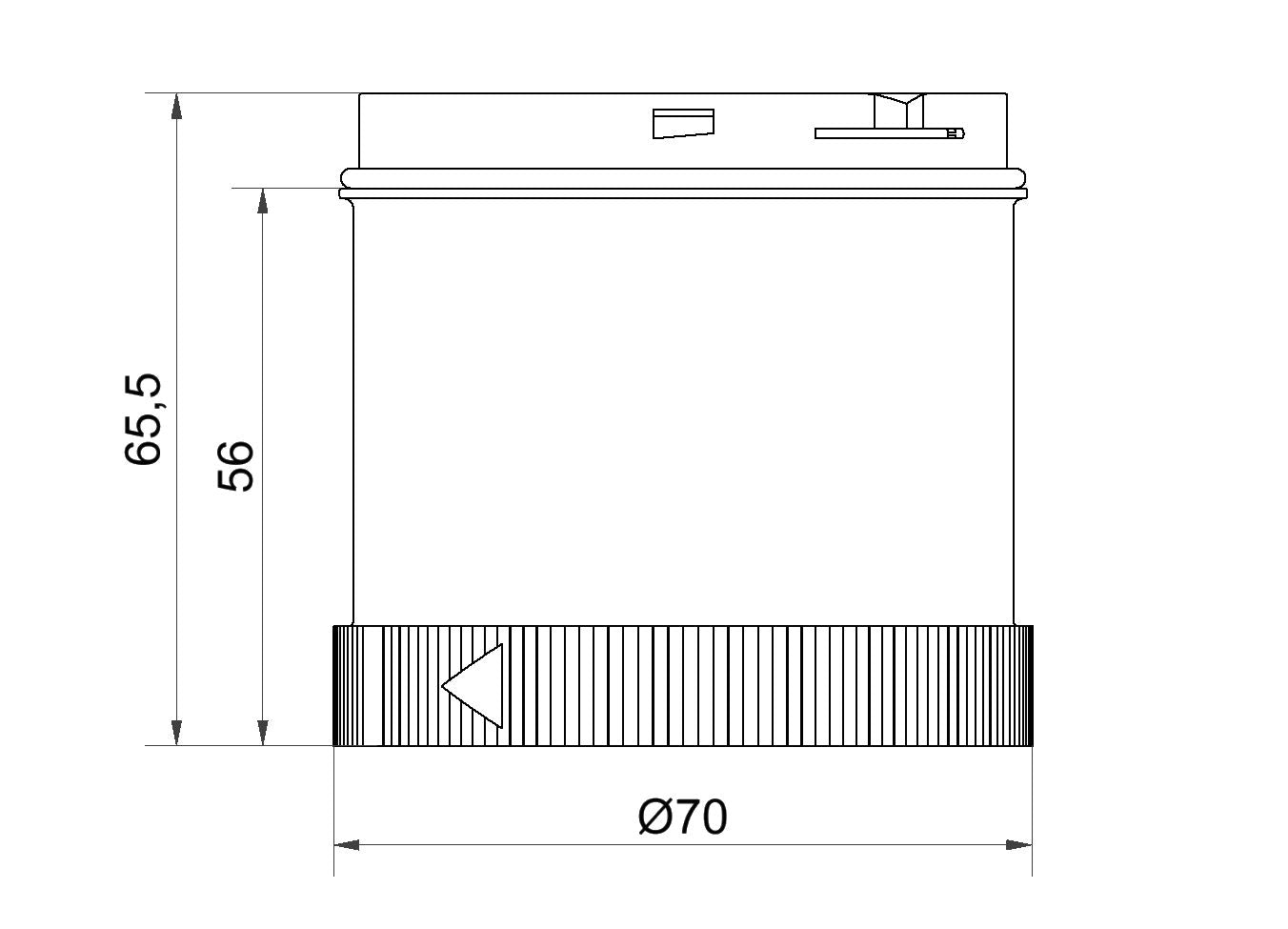

• Height: 66.00 mm
• Diameter: 70.00 mm
• Materials: PC
• Dome Colour: Clear
• Protection Category: IP65
• Working Temperature Minimum: -20°C
• Working Temperature Maximum: +50°C
• Weight with Packaging: 86.00 g
• Product Weight: 71.00 g

Electrical Data

• Operating Voltage: 230V
• Operating Voltage Type: AC
• Operating Voltage Frequency: 50Hz
• Operating Voltage Tolerance: +/- 10%
• Rated Operational Voltage: 230 VAC
• Rated Operational Current: 15.00 A
• Rated Inrush Current: 35 mA
• Protection Class: Protection class 2
• Pollution Degree: 3
• Overvoltage Category: II
• Isolation Voltage: Ui = 250V; Uimp = 2.500V

Optical Data

• Light Source: Xenon
• Optical Signal Image: Flash
• Flash Frequency: 1 Hz
• Service Life Optical: 4 million flashes minimum
• Flash Output: 2 J

Authorisation Data

• Conforms with CE: Yes
• Conforms with RoHS Directive: Yes
• WEEE: Yes
• Conforms with ATEX Directive: No
• Conforms with CCC: Yes
• Conforms with UL: cULus
• UL Type Rating: Type 12
• Conforms with FCC: No
• Conforms with IC: No
• EAC Certificate Available: Yes
• Conforms with UKCA (Importer): Yes
• Conforms with AS-I: No
• Conforms with CMIM: No
• ICAO Certification: No
• Conforms with DNV: No
• Conforms with RoHS CN: No
• Conforms with VdS: No
• Conforms with TÜV: No
