Description

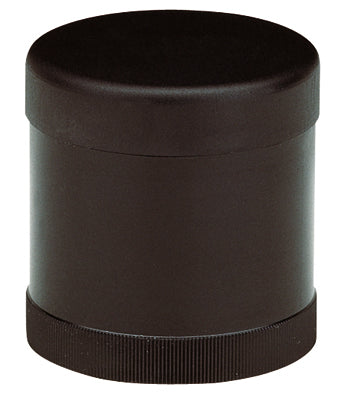

xWerma's Buzzer element contin/pulse is part of the KombiSIGN 71 series. The buzzer has a sound output of 85,0 dB, and is manufactured with PC materials. The housing colour is black and has a protection rating of IP65. The diameter is 70 mm.
Specifications

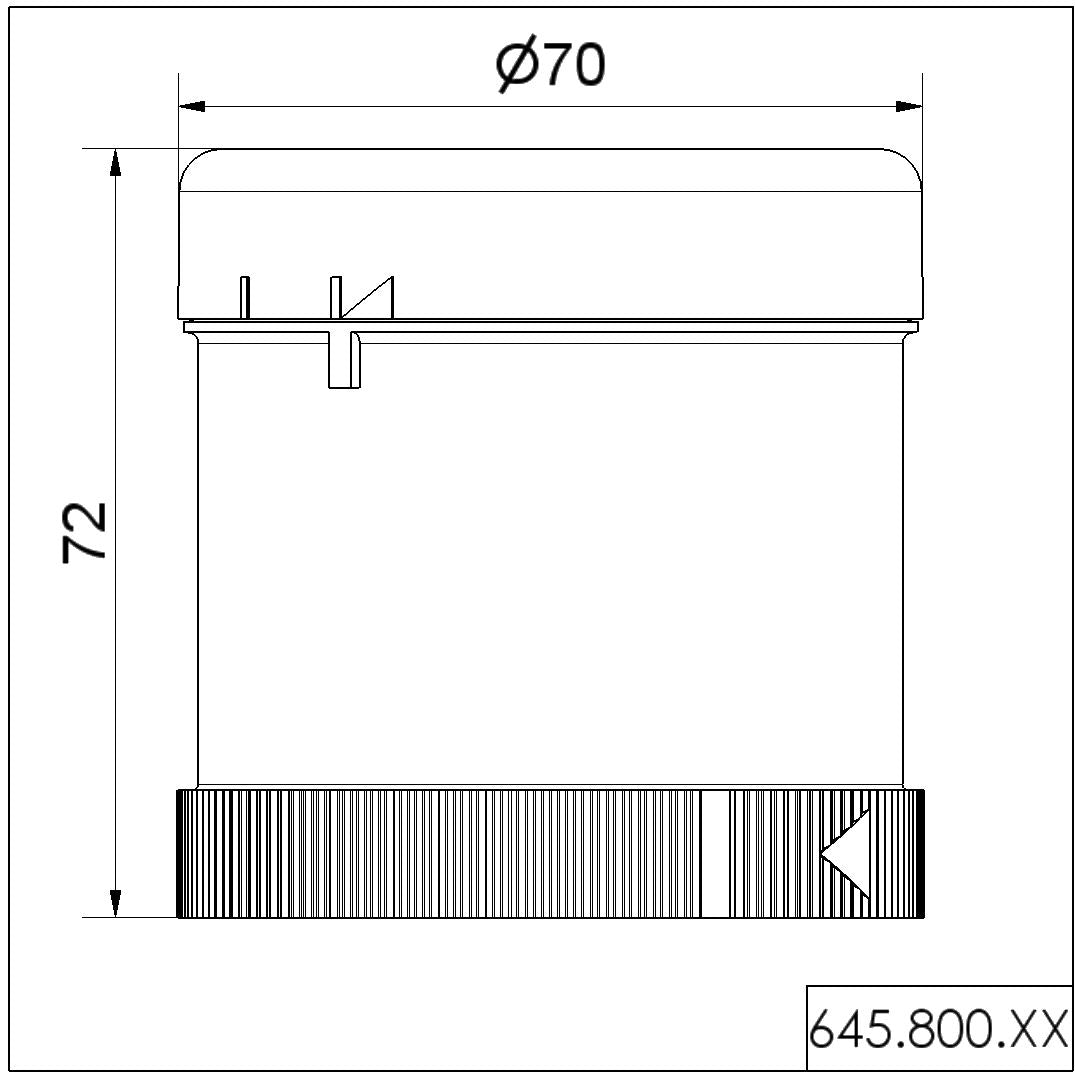

x| Height | 72 |
| Diameter | 70 |
| Materials | PC |
| Housing colour | Black |
| Protection category | IP65 |
| Weight with packaging | 88 |
| Working temperature minimum | -20°C |
| Working temperature maximum | +50°C |
| Product weight | 74 |
| Operating voltage | 230V |
| Operating voltage type | AC |
| Operating voltage frequency | 50Hz |
| Operating voltage tolerance | +/- 10% |
| Rated operational voltage | 230 VAC |
| Rated operational current | 24 |
| Rated inrush current | 1500 mA |
| Protection class | Protection class 2 |
| Overvoltage category | II |
| Pollution degree | 3 |
| insulation voltage | Ui = 250V / Uimp = 2500V |
| Conforms with CE | Yes |
| Conforms with RoHS directive | Yes |
| WEEE | Yes |
| Conforms with ATEX-directive | No |
| Conforms with CCC | Yes |
| UL Type Rating | Type 12 |
| Conforms with FCC | No |
| Conforms with ISED | No |
| Conforms with UL | cULus |
| EAC certificate available | No |
| Conforms with UKCA (Importer) | Yes |
| Conforms with AS-I | No |
| Conforms with CMIM | No |
| Conforms with RoHS CN | No |
| ICAO Certification | No |
| Conforms with DNV | No |
| Conforms with VdS | No |
| Conforms with TÜV | No |
| Volume (max) at 1m distance | 85,0 dB (A) |
| Acoustic signal image | Continuous tone; Pulse tone |
| Audio frequency | 3500 |
| Acoustic service life | 5,000 h maximum |
