Description

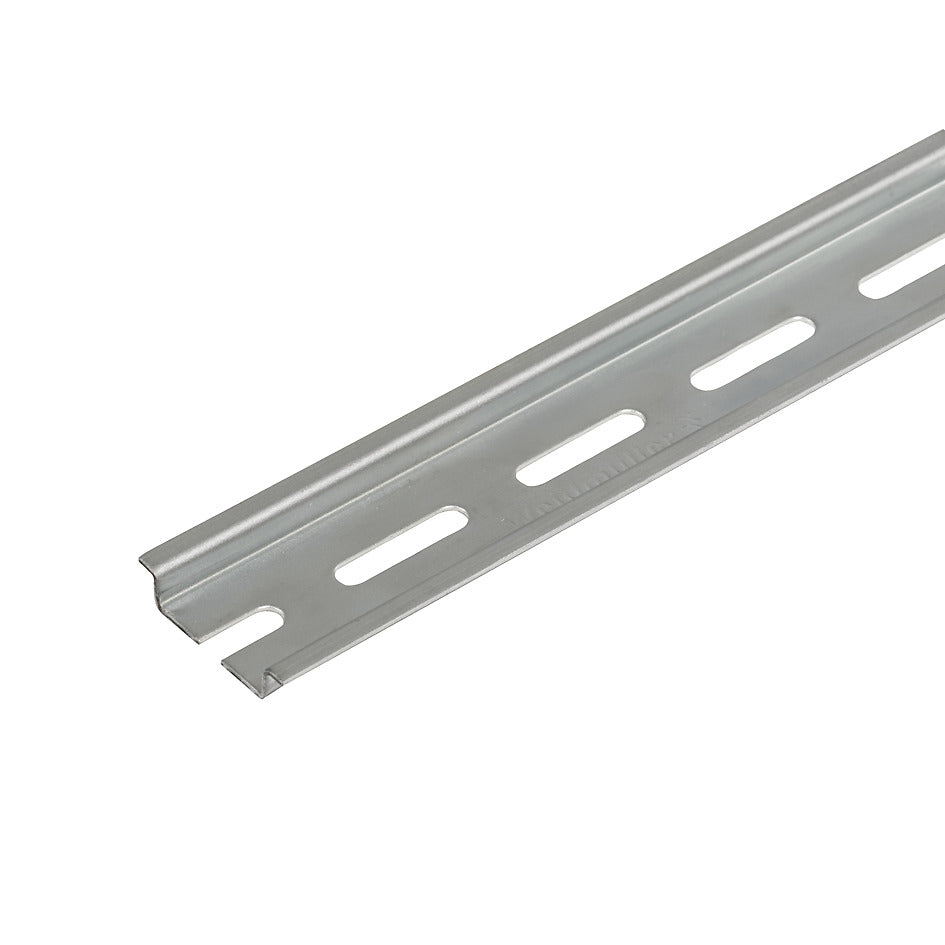

xThe TS 35X7.5/LL/6 2M/ST/ZN is a steel DIN rail designed for mounting terminal blocks and other components. It is galvanically zinc-plated and passivated, offering durability and corrosion resistance. The rail features pre-punched mounting holes for easy installation.
Specifications
x| Country of Origin | Germany |
| Compliance/Certifications | ECLASS 10.0 27-40-04-01 / ECLASS 11.0 27-28-11-02 / ECLASS 12.0 27-28-11-02 / ECLASS 9.0 27-40-04-01 / ECLASS 9.1 27-40-04-01 / ETIM 6.0 EC001530 / ETIM 7.0 EC001530 / ETIM 8.0 EC001530 / ROHS |
| Part Depth (mm) | 7,5mm |
| Part Width (mm) | 2000mm |
| Part Height (mm) | 35mm |
| Weight (g) | 155g |
| Packaging size / unit | pc(s) |
| Material: Product | Steel |
| Material: Mounting | Passivated galvanized Zinc-plated |
| Current Consumption | |
| Power Consumption |
