Description

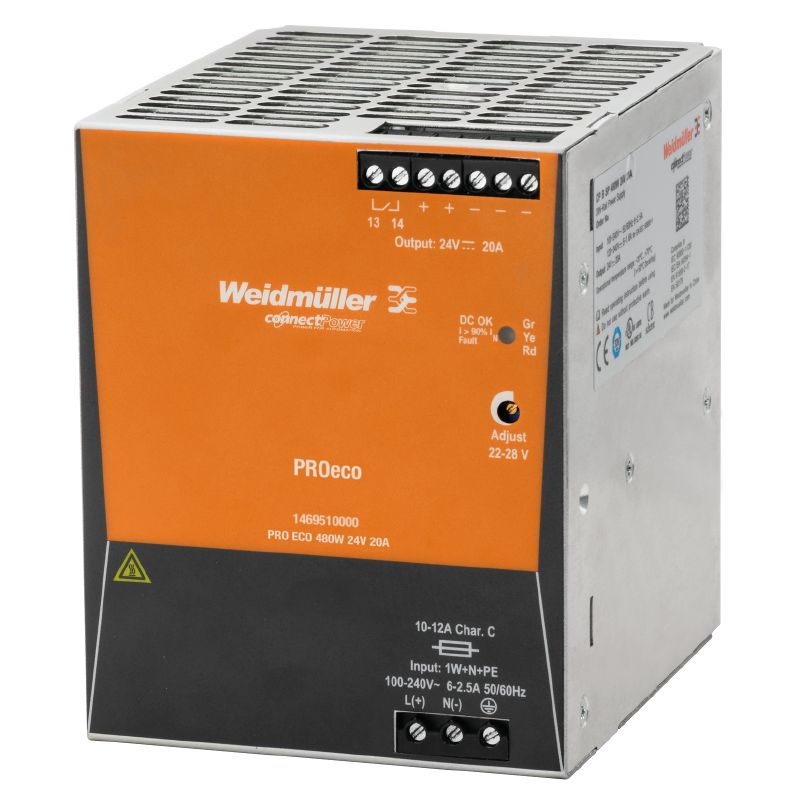

xThe Weidmüller PRO ECO 480W is a 24V DC, 20A switch-mode power supply, offering high efficiency and temperature protection. It is compatible with UPS components and diode modules, ideal for industrial automation where reliability and flexibility are required.
Specifications
x| IP Rating | IP20 |
| Country of Origin | Germany |
| Compliance/Certifications | Certificate no. (cULus) E258476 / ETIM 6.0 EC002540 / ETIM 7.0 EC002540 / ETIM 8.0 EC002540 / ETIM 9.0 EC002540 / ECLASS 9.0 27-04-07-01 / ECLASS 9.1 27-04-07-01 / ECLASS 10.0 27-04-07-01 / ECLASS 11.0 27-04-07-01 / ECLASS 12.0 27-04-07-01 / ECLASS 13.0 27-04-07-01 / REACH SVHC Lead 7439-92-1 / SCIP 6d8cdf22-8230-4af8-86c8-3558c716666d / ROHS / UL |
| Temperature: Operating | -25°C to 70°C |
| Part Depth (mm) | 120mm |
| Part Width (mm) | 100mm |
| Part Height (mm) | 125mm |
| Weight (g) | 1.557g |
| Packaging size / unit | 1 pc(s) |
| Tightening Torque | 0.5 - 0.6 Nm |
| Connection Type | Screw connection |
| Voltage Frequency Range | 47 / 63 Hz |
| Voltage Output | 28 V |
| Current Consumption | 2,37 A @ 230 VAC - 5,2 A @ 110 VAC / 1,55 A @ 370 VDC / 4,65 A @ 120 VDC |
| Power Consumption | 527.5 VA |
