Description

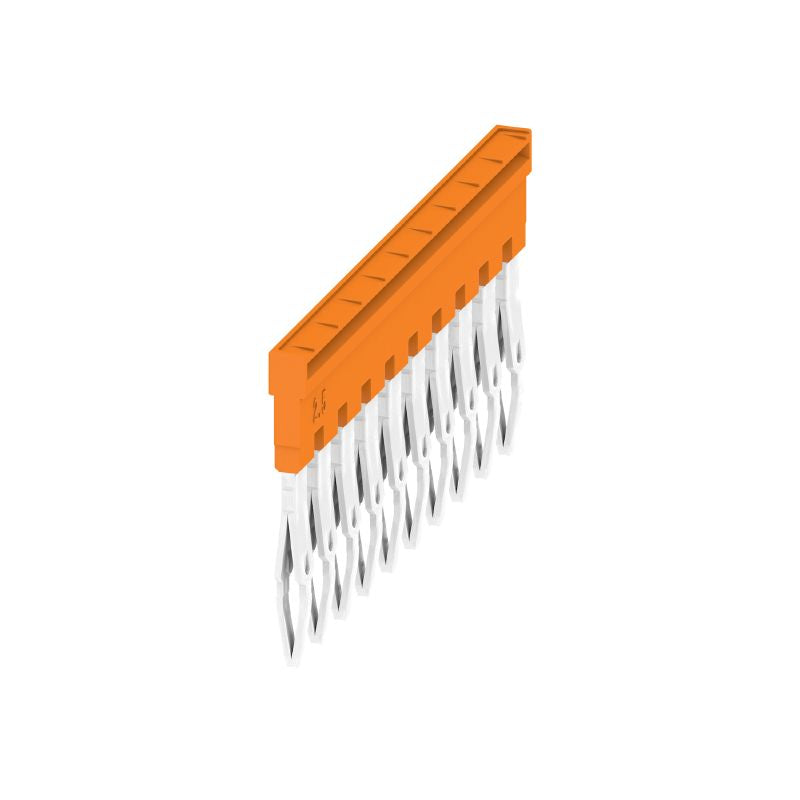

xThis ZQV 2.5N/10 orange cross-connector offers easy handling and quick installation. Rated for 24 A, it allows for efficient power distribution in industrial setups, especially where stability and modularity are required.
Specifications
x| Country of Origin | Germany |
| Compliance/Certifications | ECLASS 10.0 27-14-11-40 / ECLASS 11.0 27-14-11-40 / ECLASS 12.0 27-14-11-40 / ECLASS 13.0 27-25-03-03 / ECLASS 9.0 27-14-11-40 / ECLASS 9.1 27-14-11-40 / ETIM 6.0 EC000489 / ETIM 7.0 EC000489 / ETIM 8.0 EC000489 / ETIM 9.0 EC000489 / HTSUS; 8538.90.8180 / ROHS |
| Part Depth (mm) | 24.7mm |
| Part Width (mm) | 48.7mm |
| Part Height (mm) | 2.8mm |
| Weight (g) | 5.85g |
| Packaging size / unit | 20 pc(s) |
| Material: Product | Wemid |
| Connection Style | 10 Poles |
| Connection Type | 10 cross-connected terminals |
| Mounting Type | Direct mounting |
| Current Rating / Rated Current | 24 A |
| Colour | Orange |
