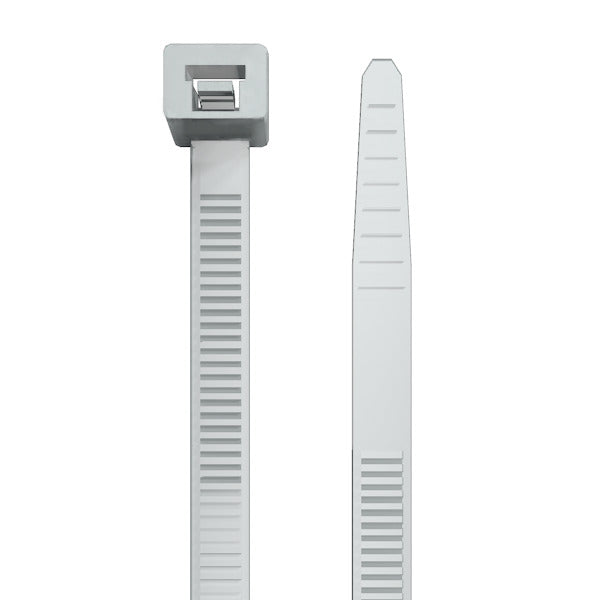

Weidmuller Cable ties, polyamide 66, natural, 2.5 x 98mm

Product Overview

The Weidmüller cable ties CB 98/2,5 NC with article number 1278600000 are durable fastening accessories designed to secure cables, markers, and wiring harnesses in industrial installation environments. These cable ties feature a 2.5 mm wide band and 98 mm length made from high-strength polyamide 66, offering a reliable tensile strength of 80 N. They provide a simple, effective solution for cable management where secure bundling and long service life are required.

Key Features

• Cable ties for secure bundling and cable management
• Band width: 2.5 mm, band length: 98 mm
• High tensile strength of 80 N for strong fixation
• Made from fracture-resistant polyamide 66 material
• Halogen-free design and RoHS compliance
• Suitable for use with cables up to 21 mm in diameter
• Designed for one-way fastening (non-reusable)
• Excellent performance over wide temperature ranges
• Pack quantity: 100 cable ties

Technical Specifications

• Article Number: 1278600000
• Product Name: CB 98/2,5 NC cable ties
• Product Type: Cable ties
• Material: Polyamide 66
• Band Width: 2.5 mm
• Band Length: 98 mm
• Tensile Strength: 80 N
• Maximum Bundle Diameter: 21 mm
• Minimum Bundle Diameter: 1 mm
• Cable Diameter (max): 21 mm
• Operating Temperature Range: −40 °C to +85 °C
• Storage Temperature Range: Comparable to operating range
• Flammability Rating: UL 94 V-2
• Halogen Content: Halogen-free
• Re-openable: No (one-way use)
• Pack Quantity: 100 pieces
• Net Weight: approx. 0.24 g per tie

Compliance & Standards

• RoHS compliant without exemption
• REACH SVHC compliant (no substances above 0.1 wt%)
• IEC 62275:2006 conformant for cable tie performance
• UL Certified with flammability rating V-2

Applications

The Weidmüller 1278600000 CB 98/2,5 NC cable ties are used for bundling and organizing cables, wires, and markers in electrical panels, control cabinets, machinery harnesses, and general industrial installations. They are suitable for secure, permanent fixation of conductors, cable markers, and harnesses in commercial and industrial wiring applications where reliable performance across a wide temperature range is required.
