Description

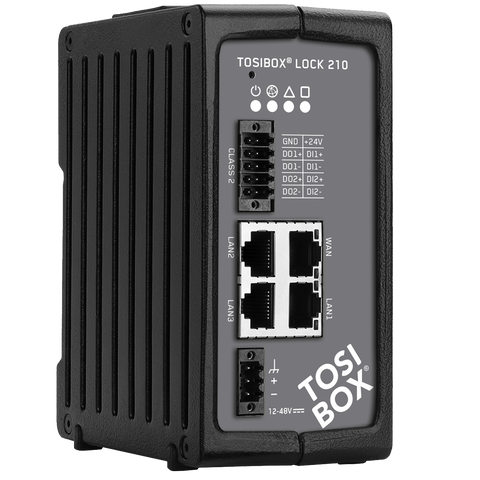

xTOSIBOX® Lock 210 works in all LAN networks. The device serve as endpoints for secure remote connections in operational (OT) networks. Lock 210 are compatible with all existing TOSIBOX® products. Modularity of the products enables easy and fast extension of networks. Efficient performance 30 Mbs VPN throughput and end-to-end encryption from Key to Lock, Lock to Lock or Lock to (Virtual) Central Lock Up to 20 concurrent VPN connections TosiOnline™ feature for automatically reconnecting dropped connections Industrial design 2/2 x Digital I/O for controlling and monitoring of Lock status Industrial design: robust and fanless enclosure, integrated DIN rail bracket and industrial screw-on DC power connector Operational temperature -20 °C … +60 °C
Specifications
x| Product code | TBL210 |
| Ports | LAN: 3 x RJ-45, 10/100 Mb/s WAN: 1 x RJ-45, 10/100 Mb/s |
| Connection type | Firewall NAT |
| Operation mode | Client, Standalone |
| VPN connection throughput | Up to 10 Mb/s |
| Dimensions | 132 x 99 x 35.5 mm / 5.20" x 3.90" x 1.40" (L x W x H) |
| Weight | 335 g / 0.74 lbs |
| Power supply | 8-30 V DC |
| Power consumption | Max. 5 W |
| Operating temperature | -20 °C … +55 °C / -4 °F … +131 °F |
| Storage temperature | -35 °C … +70 °C / -31 °F … +158 °F |
| Protection class | IP20 |
Features
- Secure remote access to machines and devices
- No need for a public IP address
- NAT and firewall friendly
- Works in all Internet connections (3G/4G, satellite, wired)
- Supplier independent
- Plug & Play
- Secure VPN tunnel
- TosiOnline™ automatic reconnection of dropped connections
- Modbus TCP/IP support
- RS-232 serial port
- DIN rail attachable
- USB port for modem connectivity and service access
- Digital I/O (2 + 1 pcs)
