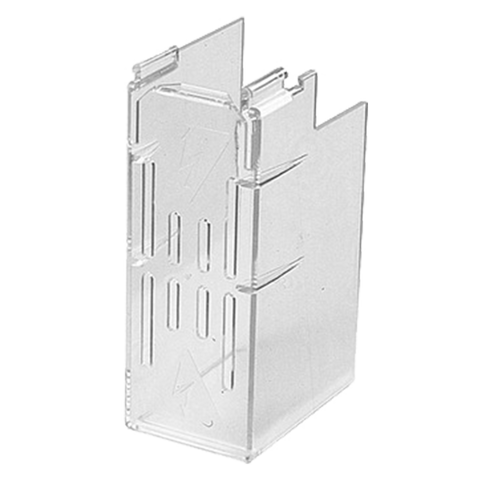

Name: Telergon Terminal shroud for CTR2, 3P + N, size 3
Brand: Telergon
SKU: DCCCU32

Telergon's 630A–800A Output Terminal Shroud is a 4 Pole. And designed to fit size is 3 changeover switch.

Vendor: Telergon

Rubicon Industrial Technology is the exclusive South African distributor for Telergon.

Availability: In stock

Product type: Control Panel

Please hurry! Only 1 left in stock

Vendor

Vendor

Vendor

Vendor

Vendor

Vendor

Vendor

Vendor

Vendor

Vendor

Rated thermal current Ith	1000 A / 1250 A
Rated insulation voltage Ui	1000 V
Rated dielectric strength	8000 V
Rated impulse withstand voltage Uimp	12 kV
Rated operational current Ie	1000 A at 400V AC21A / 1250 A at 400V AC21A
Rated operational power Pe	501 kW / 626 kW at 3x400V AC23A
Rated capacitor power	1000 KVar / 1250 KVar at 400V
Rated breaking capacity	3000 A at 400V AC22A
Short-circuit making capacity Icm	32 kA (peak)
Short-time withstand current Icw	25 kA rms
Minimum number of mechanical operations	10000 cycles
Minimum number of electrical operations	500 cycles (400V AC22A)
Maximum weight (3 poles) CCF	22.5 Kg / 25 Kg
Maximum weight (4 poles) CCF	24.3 Kg / 27.3 Kg
Maximum weight (3 poles) CCP	25 Kg / 28.3 Kg
Maximum weight (4 poles) CCP	26 Kg / 29.7 Kg
Dimensions (L x H)	ø19.5 mm / 65 mm / 40 mm / 315 mm

Telergon Terminal shroud for CTR2, 3P + N, size 3 Part number DCCCU32
