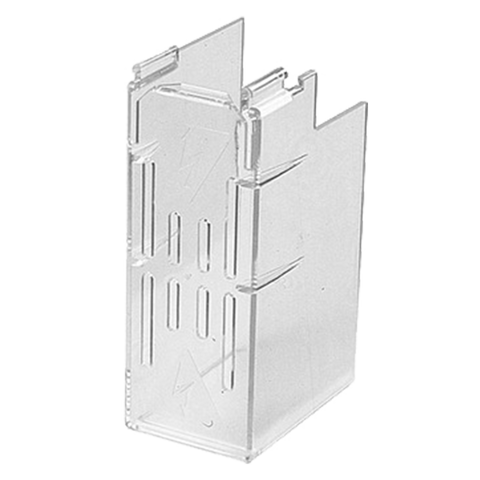

Name: Telergon Terminal shroud for CTR2, 3P + N, size 2
Brand: Telergon
SKU: DCCCU22

\nTelergon's 630A - 800A Output Terminal Shroud is a 4 Pole. And designed to fit size is 2 changeover switch.

Vendor: Telergon

Rubicon Industrial Technology is the exclusive South African distributor for Telergon.

Availability: In stock

Product type: Control Panel

Please hurry! Only 2 left in stock

Vendor

Vendor

Vendor

Vendor

Vendor

Vendor

Vendor

Vendor

Vendor

Vendor

Rated Thermal Current (Ith)	500 A, 630 A, 800 A
Rated Insulation Voltage (Ui)	1000 V
Rated Dielectric Strength	8000 V (50 Hz., 1 min.)
Rated Impulse Withstand Voltage (Uimp)	12 kV
AC Rated Operational Current (Ie)	500 A, 630 A, 800 A at 400V AC21A
DC Rated Operational Power	200 kW, 250 kW, 315 kW at 3x400V AC23A
Rated Making Capacity	1500 A, 1890 A, 2400 A at 400V AC22A
Short-Circuit Making Capacity (Icm)	20 kA (peak)
Short-Time Withstand Current (Icw)	13 kA rms
Minimum Number of Mechanical Operations	10000 cycles
Minimum Number of Electrical Operations	1000 cycles at 400V AC22A
Maximum Weight (CCF)	11.5/12.6 kg, 11.9/13.2 kg
Maximum Weight (CCP)	12.8/14.3 kg, 13/14.6 kg
Dimensions (mm)	482 x 247 x 60 (max H: 92, min H: 15)
Max Terminal Size (Cu)	2x240 mm²
Protection Class	IP65 UL50E/NEMA 250
Approval Standards	CE, IEC, EAC, IEL
Rated Capacity for Capacitive Loads	500 A at 400V, sen φ = 0.65

Telergon Terminal shroud for CTR2, 3P + N, size 2 Part number DCCCU22
