Description

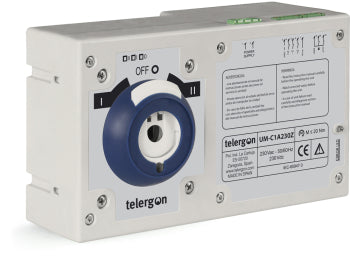

xThis changeover switch is a 3-pole, size 0 unit rated at 160 A, designed for motorized operation in changeover applications such as switching between two power sources. It is suitable for installation in control panels handling power distribution duties, with an operating temperature range of -25ºC to 55ºC. The switch complies with CE and IEC 60947-3 requirements and has a rated operating period of 8000 cycles.
Key specifications
- Operating temperature: - 25ºC to 55ºC
Specifications
x| Compliance/Certifications | CE / IEC / IEC 60947-3 |
| Temperature: Operating | - 25ºC to 55ºC |
| Part Depth (mm) | 68 mm |
| Part Width (mm) | 250 mm |
| Part Height (mm) | 102 mm |
| Weight (g) | 1800 g |
| Current Rating / Rated Current | 160 A |
| Operating Period | 8000 cycles |
