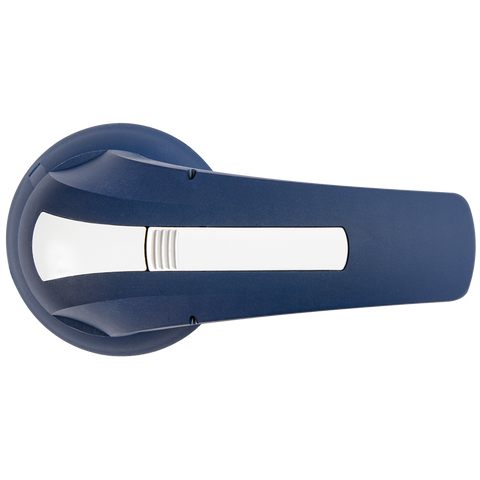

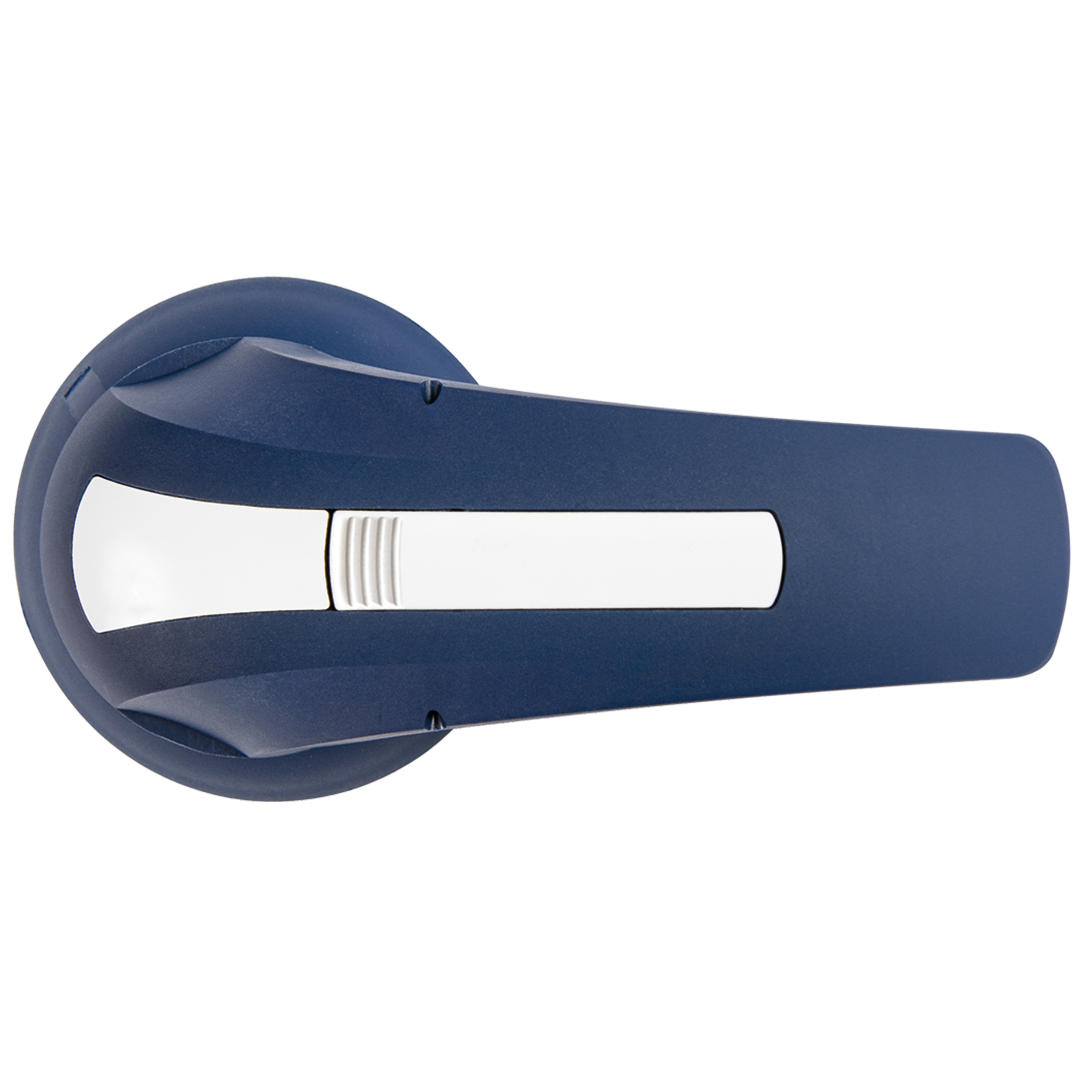

Telergon External manual handle, size 1 Part number D5LLA11

Telergon's 250A–400A External Handle is designed to swiftly and effortlessly be added to the front Changeover Switches whilst in the field. The handle has an ergonomic grip, with an excellent torque/resistance balance and is IP65 rated. The DCCLI31 size is 1, the included shaft is 277mm in length and comes...
Vendor: Telergon
Rubicon Industrial Technology is the exclusive South African distributor for Telergon.
Availability: Out Of Stock
Product type: Control Panel
Please hurry! Only 0 left in stock
Description
Description
x
Telergon's 250A–400A External Handle is designed to swiftly and effortlessly be added to the front Changeover Switches whilst in the field. The handle has an ergonomic grip, with an excellent torque/resistance balance and is IP65 rated. The DCCLI31 size is 1, the included shaft is 277mm in length and comes in standard Blue.
Specifications
Specifications
x
SeriesS5F
Size0
Rated Thermal Current Ith @ 40ºC (A)125, 160, 200
Rated Insulation Voltage Ui (V)1000
Rated Impulse Withstand Voltage Uimp (kV)8
Frequency (Hz)50 / 60
Rated Breaking Capacity at 400V AC22 (A)375, 480, 600
Short Circuit Making Capacity Icm (kA peak)13
Number of Mechanical Operations (Cycles)8000
Maximum Weight (Kg)1.8/2.1, 1.8/2.1, 1.9/2.2
Documents
Documents
x
Download Datasheet
